Brand: VENIT/OEM
Our products are made of alloy steel to ensure superior strength and durability. Its breaking load capacity is four times its operating load limit, providing a high safety margin.

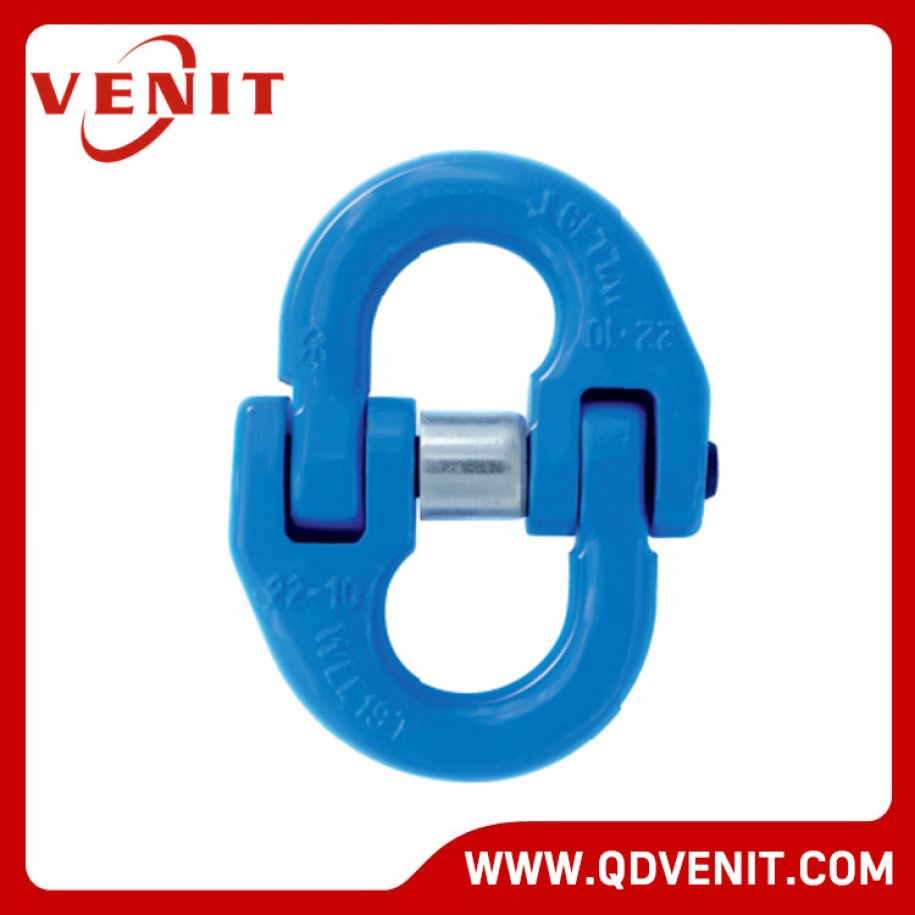

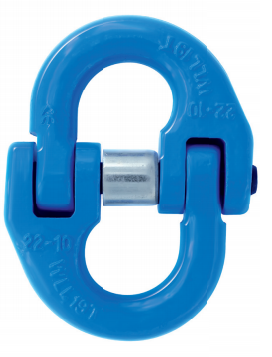

DS1076 G100 New Type European Type Connecting Link
Forged super alloy steel-Quenched and Temered.
It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
Suitable for use with G100 chain.
The performance is increased by 25% compared with G80 products.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: plastic spraying
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the working load limit.

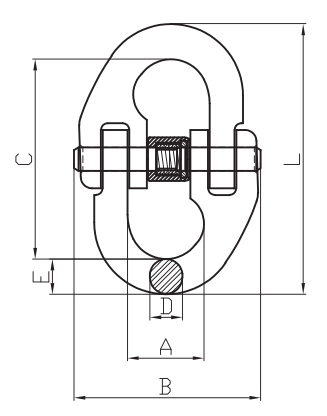

| Item No. | Weight/kg | WLL/T | B.L/T | A±1 | B±1 | C±3 | D±0.5 | E±1 | L±4 |
| VNT1076-6 | 0.125 | 1.4 | 5.6 | 17 | 41.5 | 44.5 | 7 | 7.5 | 60 |
Grade 100 Rigging Hardware
All the G100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
