Brand: VENIT/OEM
The flat design of the link allows for easy integration into various lifting and connecting systems,extending the product's lifespan and reducing maintenance costs.

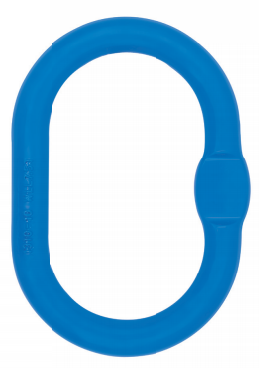

VNT1013 G100 Forged Master Link with Flat
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
● It can be matched with G100 chain.
● The performance is increased by 25% compared with G80 products.
● Each work piece should pass testing at 2.5 times of working load limit.
● We should carry out sampling and 20000 times of fatigue testing.
● We should carry out strict sampling and breakage testing for each batch of products.
● We should carry out 100% magnetic powder flaw detection.
● Surface treatment: plastics spraying.
● Color code: Blue RAL5015.
● All sizes are forged.
| Item No. | Weight/kg | WLL/T | A | B | D | S×H |
| VNT1013-06 | 0.23 | 1.4 | 100 | 60 | 11±0.5 | 6+0.5×22 |
| VNT1013-86 | 0.4 | 2.5 | 120 | 70 | 13±1 | 7+0.5×25 |
| VNT1013-108 | 0.7 | 4 | 140 | 80 | 17±1 | 8+0.5×28 |
| VNT1013-1310 | 1.5 | 7.5 | 160 | 95 | 22±1 | 11±0.5×35 |
| VNT1013-16 | 2.2 | 10 | 190 | 110 | 25±1 | 13±0.5×43 |
| VNT1013-1613 | 2.51 | 12.5 | 180 | 100 | 27+1 | 14±0.5×46 |
| VNT1013-2016 | 5.1 | 17 | 240 | 140 | 32+1 | 17±0.5×55 |
| VNT1013-2220 | 7.2 | 25 | 250 | 150 | 38+1-2 | 21±0.5×65 |
| VNT1013-2622 | 8.3 | 26.5 | 250 | 150 | 41+1-2 | 23±0.5×73 |
| VNT1013-3226 | 11.8 | 37 | 300 | 180 | 45+1-2 | 27±0.5×85 |
Ultimate load is 5 times the working load limit.
All size are forged.
Large inside length.
All sizes:there will be pressing flat only on request.
The pressing flat is for use with VNT1027-G100 OMEGA LINK.
