Brand: VENIT/OEM
The Eye Shortening feature allows for easy adjustment of the hook's length, making it suitable for use with a variety of lifting equipment and loads.

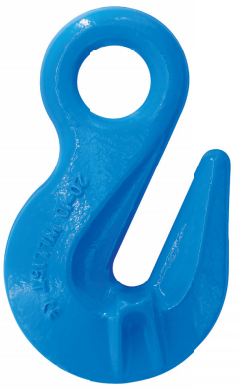

VNT1008 G100 Eye Shortening Cradle Grab Hook with Wings
The alloy eye shortening grab hook has the following features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: Powder plastified;
● Color code: Blue RAL5015.
Ultimate load is 4 times the Working Load Limit.

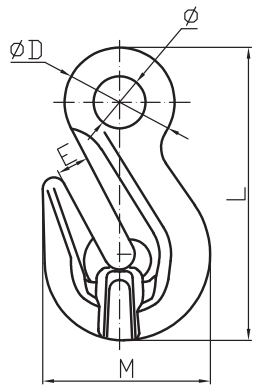

Item No. | Weight/kg | WLL/T | B.L/T | E±1 | Φ±1 | ΦD±1.5 | M±2 | L±3 |
VNT1008-06 | 0.15 | 1.4 | 5.6 | 8 | 13.5 | 30.5 | 43.5 | 73 |
VNT1008-08 | 0.3 | 2.5 | 10 | 11 | 17.5 | 37 | 53 | 93 |
VNT1008-10 | 0.79 | 4 | 16 | 13.5 | 22 | 48.5 | 74 | 129 |
VNT1008-13 | 1.67 | 6.7 | 26.8 | 16.5 | 28 | 59 | 96 | 166 |
VNT1008-16 | 2.74 | 10 | 40 | 19 | 36 | 75 | 116 | 186 |

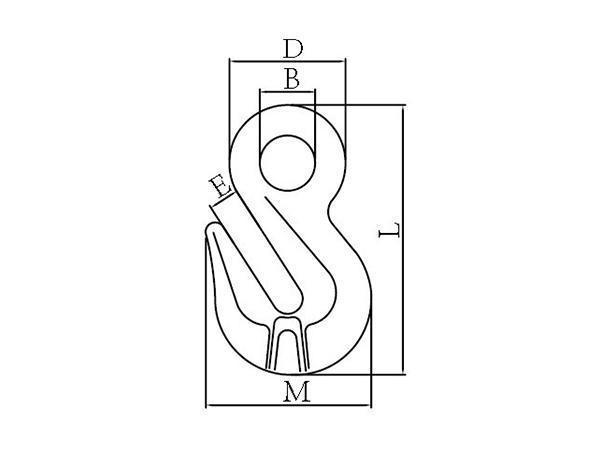

Item No. | Weight/kg | WLL/T | B.L/T | E±1 | B±1 | D±1.5 | M±2 | L±3 |
VNT1008-20 | 4.72 | 16 | 64 | 24 | 43.5 | 89.5 | 143 | 227 |
VNT1008-22 | 8.2 | 19 | 76 | 27 | 48.5 | 100.5 | 160.5 | 260.5 |
