Advanced Cradle Grab Hook | VNT1009 G100 Clevis Shortening Hook

VNT1009 G100 Clevis Shortening Cradle Grab Hook with Wings

Brand: VENIT/OEM

The Cradle Grab design of the Hook ensures that the load is securely attached to the hook, reducing the risk of accidental disengagement and ensuring your safe operation.

Product Details

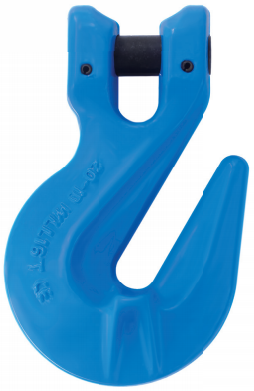

VNT1009 G100 Clevis Shortening Cradle Grab Hook with Wings

The alloy eye shortening grab hook has the following features

● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;

● It can be matched with G100 chains;

● The performance is increased by 25% compared with G80 products;

● Each workpiece should pass testing at 2.5 times of working load limit;

● We should carry out sampling and 20000 times of fatigue testing;

● We should carry out strict sampling and breakage testing for each batch of products;

● We should carry out 100% magnetic powder flaw detection;

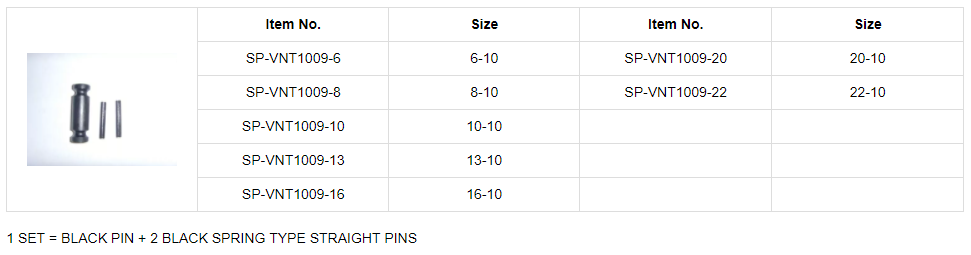

● 100% of the pin should be tested to ensure that they have the same hardness;

● Surface treatment: Powder plastified;

● Color code: Blue RAL5015.

Ultimate load is 4 times the Working Load Limit.

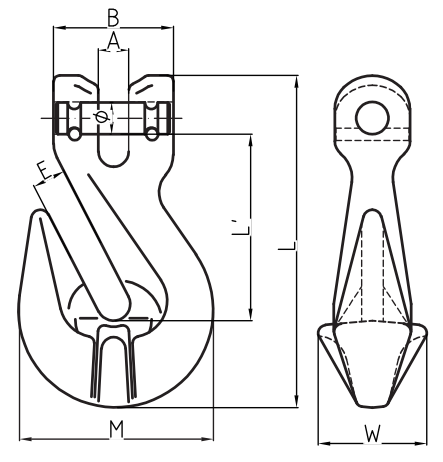

Item No.	Weight/kg	WLL/T	B.L/T	A±0.5	B±1.5	E±1	M±2	W±1	L’±2	L±2	Φ
VNT1009-06	0.22	1.4	5.6	7.5	32	8	43.5	24	44.5	75	7.6
VNT1009-08	0.34	2.5	10	9.8	36	11	54	30.5	53	93	9.8
VNT1009-10	0.82	4	16	12.5	46	13.5	72	42	73	128	13
VNT1009-13	1.75	6.7	26.8	15	59	15	96	53.5	92	166	15.8
VNT1009-16	2.88	10	40	18.5	70	19	116	74	99	189	19.5
VNT1009-20	4.84	16	64	24	85	24	143	74	133	224	24
VNT1009-22	8.3	19	76	27	100	27	160.5	90	141	262	28
