Brand: VENIT/OEM
The European Type Swivel Self-Locking Hook features a rotating design that allows for easy handling and positioning, making it perfect for use in tight Spaces.

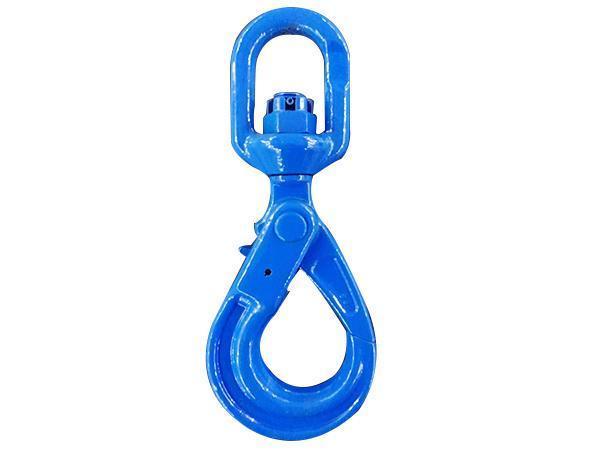

VNT1007 G100 European Type Swivel Self-Locking Hook
The Alloy Swivel Self Locking Hook has the following features
● The self locking structure of the hook will be automatically closed under the situation of load lifting, so that the lifting is much safer.
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● Surface treatment: Powder plastified;
● Color code: Blue RAL5015.
Ultimate load is 4 times the Working Load Limit.

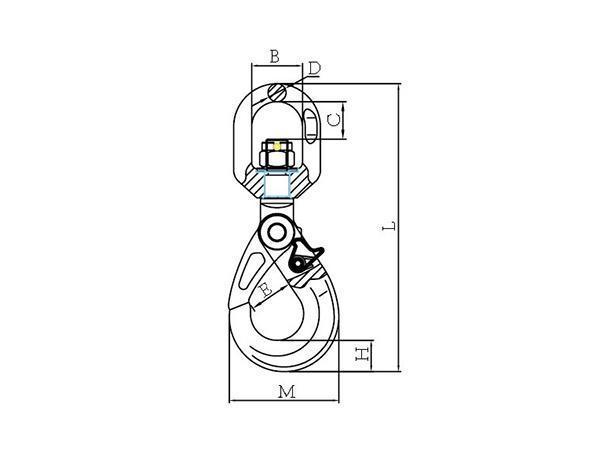

| Item code | Weight (kg) | Working load limit (t) | Breaking load (t) | B±1 (mm) | C±1 (mm) | D±0.5 (mm) | E±1 (mm) | H±1 (mm) | M±2 (mm) | L±3 (mm) |
| VNT1007-06 | 0.6 | 1.4 | 5.6 | 32.5 | 23 | 11.5 | 28 | 20 | 70 | 184 |
| VNT1007-08 | 1.1 | 2.5 | 10 | 36 | 28 | 13 | 35.5 | 26 | 90 | 229 |
| VNT1007-10 | 2 | 4 | 16 | 42 | 35 | 15.5 | 45 | 30 | 108 | 269 |
| VNT1007-13 | 4 | 6.7 | 26.8 | 50 | 40 | 17 | 53.5 | 40.5 | 138.5 | 330 |
| VNT1007-16 | 6.8 | 10 | 40 | 61 | 56 | 21.5 | 62 | 50.5 | 170.5 | 413 |
| VNT1007-20 | 12.5 | 16 | 64 | 72 | 62 | 26 | 76.5 | 62 | 192.5 | 463 |
| VNT1007-22 | 17.1 | 19 | 76 | 97 | 94 | 33 | 80 | 66 | 205 | 572 |

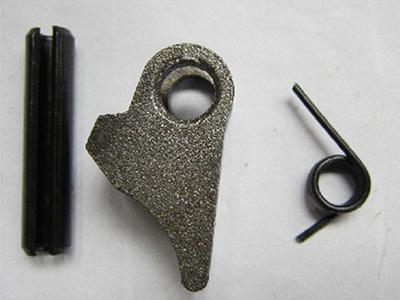

SPARE PARTS: (1 SET= switch of primary color+black spring+black elastic cylindrical pin)
Parameters (Unit: mm)
 | ||
| Item Code | SIZE | Item Code |
| SP-VNT1005/6/7-6 | 6-10 | SP-VNT1005/6/7-20 |
| SP-VNT1005/6/7-8 | 8-10 | SP-VNT1005/6/7-22 |
| SP-VNT1005/6/7-10 | 10-10 | |
| SP-VNT1005/6/7-13 | 13-10 | |
| SP-VNT1005/6/7-16 | 16-10 |
