Brand: VENIT/OEM
The VNT1014 G100 Forged Oversized Master Link features an enlarged size that provides increased load-bearing capacity and stability.

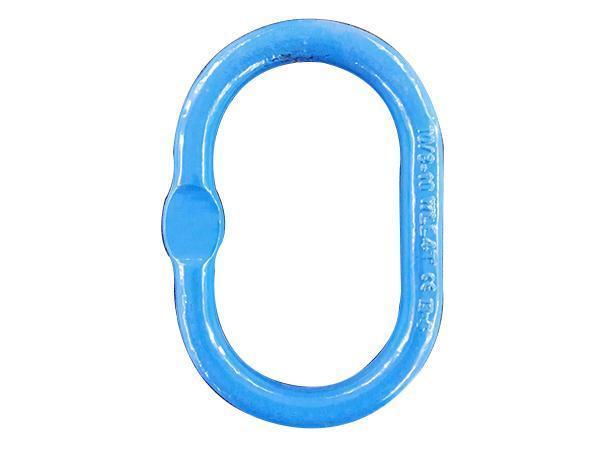

VNT1014 G100 Forged Oversized Master Link
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
● It can be matched with G100 chain.
● The performance is increased by 25% compared with G80 products.
● Each work piece should pass testing at 2.5 times of working load limit.
● We should carry out sampling and 20000 times of fatigue testing.
● We should carry out strict sampling and breakage testing for each batch of products.
● We should carry out 100% magnetic powder flaw detection.
● Surface treatment: plastics spraying.
● Color code: Blue RAL5015.
● All sizes are forged.
Ultimate load is 4 times the working load limit.

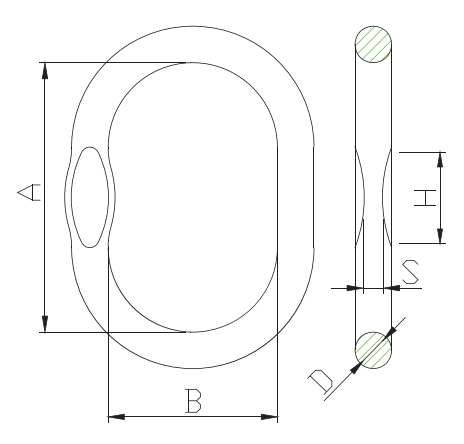

Item No. | Weight/kg | WLL/T | A | B | D | S×H |
VNT1014-10 | 3.7 | 4 | 340 | 180 | 25 | 13.5±0.5×40 |
VNT1014-13 | 4.7 | 6.7 | 340 | 180 | 28 | 15±0.5×48 |
VNT1014-16 | 7.0 | 10 | 340 | 180 | 34 | 18±0.5×55 |
VNT1014-20 | 8.9 | 16 | 340 | 180 | 38 | 20±0.5×60 |
Oversized master link.
All sizes:there will be pressing flat only on request.
The pressing flat is for use with VNT1027-G100 OMEGA LINK.
