Brand: VENIT/OEM
The flat design of the link allows for easy integration into various lifting and connecting systems, whether you're working in construction, mining, shipping, or any other heavy industry.

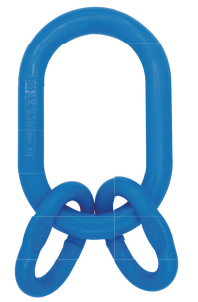

VNT1012 G100 Master Link Assembly with Flat
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
● It can be matched with G100 chain.
● The performance is increased by 25% compared with G80 products.
● Each work piece should pass testing at 2.5 times of working load limit.
● We should carry out sampling and 20000 times of fatigue testing.
● We should carry out strict sampling and breakage testing for each batch of products.
● We should carry out 100% magnetic powder flaw detection.
● Surface treatment: plastics spraying.
● Color code: Blue RAL5015.
● All sizes are forged.
● All sizes: main ring is forged and sub-ring is welded.
● According to standard EN1677-4.
Ultimate load is 4 times the working load limit.

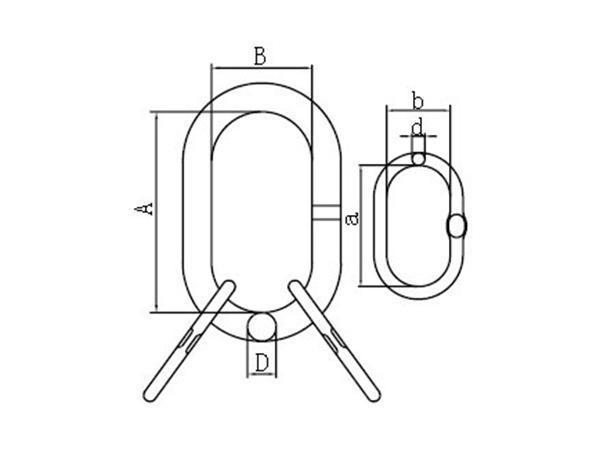

Item No. | G100 Chain for 3/4 Legs Sling | Weight/kg | WLL/T | A | B | D | a | b | d |
VNT1012-6 | 6MM | 1.3 | 3 | 135 | 75 | 19 | 54 | 25 | 13 |
VNT1012-8 | 8MM | 2.33 | 5.3 | 160 | 90 | 23 | 70 | 34 | 16.5 |
VNT1012-10 | 10MM | 3.7 | 8 | 180 | 100 | 27 | 85 | 40 | 19 |
VNT1012-13 | 13MM | 6.5 | 14 | 200 | 110 | 33 | 115 | 50 | 23 |
VNT1012-16 | 16MM | 10.1 | 21.2 | 260 | 140 | 36 | 140 | 65 | 27 |
VNT1012-20 | 19/20MM | 22.8 | 33.6 | 350 | 190 | 50 | 180 | 70 | 33 |
VNT1012-22 | 22MM | 26 | 33.9 | 350 | 190 | 50 | 180 | 100 | 36 |
