Brand: VENIT/OEM
The VNT1011 G100 Forged Master Link uses advanced forging technology to compress materials and eliminate internal defects, resulting in a stronger product.
VNT1011 G100 Forged Master Link
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
● It can be matched with G100 chains.
● The performance is increased by 25% compared with G80 products.
● Each workpiece should pass testing at 2.5 times of working load limit.
● We should carry out sampling and 20000 times of fatigue testing.
● We should carry out strict sampling and breakage testing for each batch of products.
● We should carry out 100% magnetic powder flaw detection.
● Surface treatment: plastics spraying.
● Color code: Blue RAL5015.
● All sizes are forged.
Ultimate load is 4 times the Working Load Limit.

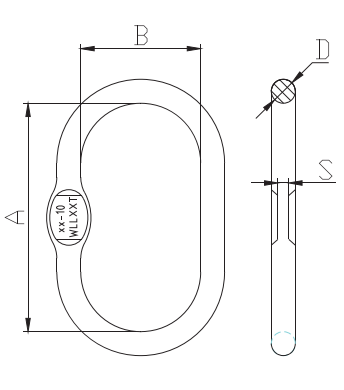

| Item No. | Weight/kg | WLL/T | B.L/T | A | B | D | S×H | Φ | |
| 1leg | 2legs | ||||||||
| VNT1011-05 | 0.14 | 1.4 | 5.6 | 80 | 50 | 10 | - | 5 | 5 |
| VNT1011-76 | 0.34 | 2.3 | 9.2 | 110 | 60 | 13 | 7+0.3×25 | 6-7 | 6 |
| VNT1011-87 | 0.53 | 3.5 | 14 | 110 | 60 | 16 | 7+0.5×25 | 8 | 7 |
| VNT1011-108 | 0.86 | 5 | 20 | 135 | 75 | 18 | 8+0.5×28 | 10 | 8 |
| VNT1011-1310 | 1.60 | 7.6 | 30.4 | 160 | 90 | 23 | 11±0.5×35 | 13 | 10 |
| VNT1011-1613 | 2.46 | 10 | 40 | 180 | 100 | 27 | 13±0.5×43 | 16 | 13 |
| VNT1011-1916 | 4.14 | 14 | 56 | 200 | 110 | 33 | 17±0.5×55 | 19 | 16 |
| VNT1011-2219 | 6.22 | 25.1 | 100.4 | 260 | 140 | 36 | 19±0.5×60 | 22 | 19 |
| VNT1011-2622 | 12.85 | 30.8 | 123.2 | 340 | 180 | 45 | - | 26 | 22 |
| VNT1011-3226 | 16.22 | 40 | 160 | 350 | 190 | 50 | - | 32 | 26 |
| VNT1011-0032 | 27.01 | 60 | 240 | 400 | 200 | 60 | - | - | 32 |
| VNT1011-72MM | 45 | 81.5 | 326 | 460 | 250 | 70 | - | - | - |
For type VNT1011-10 to VNT1011-36, there will be pressing flat only on request.
Item VNT1011-45 to VNT1011-50: there is no pressing flat.
The pressing flat is for use with VNT1027-G100 Omega Link
