Brand: VENIT/OEM
The Eye of the Hook features a Self-Locking mechanism that ensures the load remains securely attached, preventing accidental detachment.

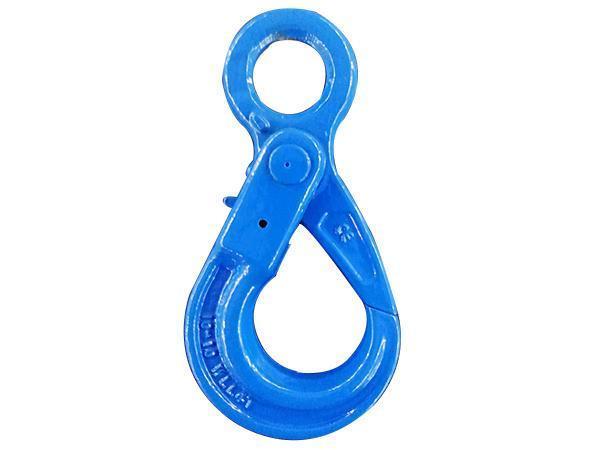

VNT1005 G100 European Type Eye Self-Locking Hook
The alloy steel self locking eye hook has the following features
● The self locking structure of the hook will be automatically closed under the situation of load lifting, so that the lifting is much safer.
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying;
● Color code: Blue RAL5015.
Ultimate load is 4 times the Working Load Limit.

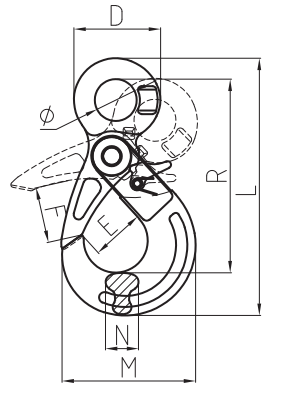

Item No. | Weight/kg | WLL/T | B.L/T | Φ | D±1 | E±1 | F±1 | R±2 | M±2 | N±1 | L±3 |
VNT1005-06 | 0.5 | 1.4 | 5.6 | 21 | 43 | 28 | 31 | 110 | 70 | 15 | 141 |
VNT1005-07 | 0.72 | 1.9 | 7.6 | 27 | 52 | 31 | 34 | 127 | 81 | 12 | 162 |
VNT1005-08 | 0.9 | 2.5 | 10 | 27 | 52 | 36 | 40 | 137 | 90 | 20 | 175 |
VNT1005-10 | 1.5 | 4 | 16 | 34.5 | 64.5 | 45 | 50 | 170 | 108 | 26 | 212.5 |
VNT1005-13 | 2.7 | 6.7 | 26.8 | 40 | 80 | 53.6 | 66 | 209 | 138.5 | 32.5 | 270 |
VNT1005-16 | 5.7 | 10 | 40 | 50 | 104 | 61 | 75 | 256 | 170.5 | 38 | 333 |
VNT1005-20 | 7.9 | 16 | 64 | 60 | 120 | 76.5 | 80 | 277 | 192.5 | 50 | 369 |
VNT1005-22 | 11.2 | 19 | 76 | 70 | 134 | 80 | 104.6 | 319 | 205 | 52 | 417 |
