Brand: VENIT/OEM
The Clevis Sling Hook can be easily and securely attached to the sling, chain or cable, ensuring a stable and balanced load distribution and reducing the risk of damage to the hook or load.

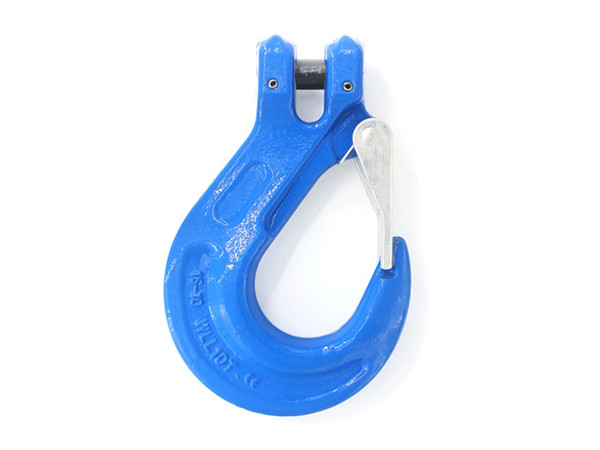

VNT1004 G100 Clevis Sling Hook with Safety Latch
The Alloy Steel Sling Hook (Eye Hook, Clevis Hook) has the following features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: Powder plastified;
● Color code: Blue RAL5015;
● It is equipped with a spare part, cast latch.
Ultimate load is 4 times the Working Load Limit.
| Item No. | Weight/kg | WLL/T | B.L/T | A±0.5 | B±1 | E±1.5 | H±1 | M±2 | L±2.5 |
| VNT1004-06 | 0.33 | 1.4 | 5.6 | 7.5 | 32 | 18.5 | 21 | 68.5 | 109 |
| VNT1004-08 | 0.7 | 2.5 | 10 | 9.5 | 37 | 25 | 27.5 | 88 | 134 |
| VNT1004-10 | 1.3 | 4 | 16 | 12 | 48 | 28 | 33.5 | 105.5 | 161.5 |
| VNT1004-13 | 2.3 | 6.7 | 26.8 | 15 | 59 | 38 | 42 | 134 | 203 |
| VNT1004-16 | 3.6 | 10 | 40 | 18.5 | 70 | 44 | 50 | 160.5 | 248 |
| VNT1004-20 | 7 | 16 | 64 | 25 | 85 | 52 | 56 | 190.5 | 297 |
| VNT1004-22 | 12.1 | 19 | 76 | 27 | 100 | 66 | 62 | 214.5 | 326 |

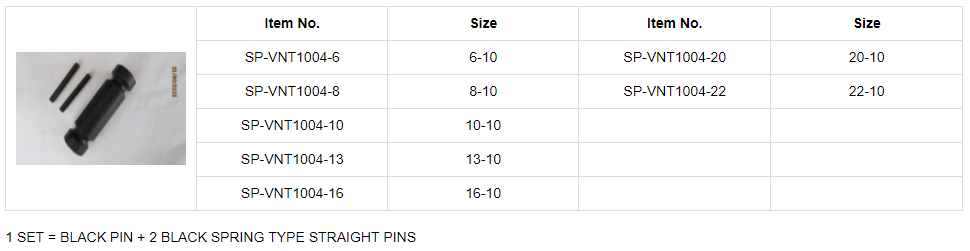

SP-VNT1004-SPARE PART FOR VNT1004(LOAD PIN)
