Brand: VENIT/OEM
The Hook adopts European design, safe, reliable and efficient. The Locks are forged from high-quality alloy steel, ensuring superior strength and durability.

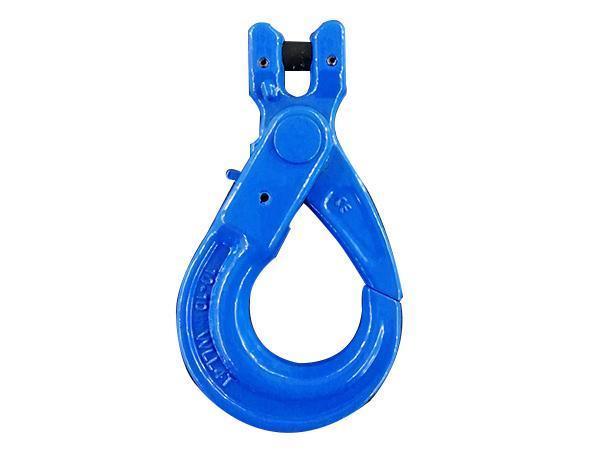

VNT1006 G100 European Type Forged Clevis Self-Locking Hook
The alloy steel clevis self locking hook has the following features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: Powder plastified;
● Color code: Blue RAL5015;
● The self locking structure of the hook will be automatically closed under the situation of load lifting, so that the lifting is much safer.
Ultimate load is 4 times the Working Load Limit.

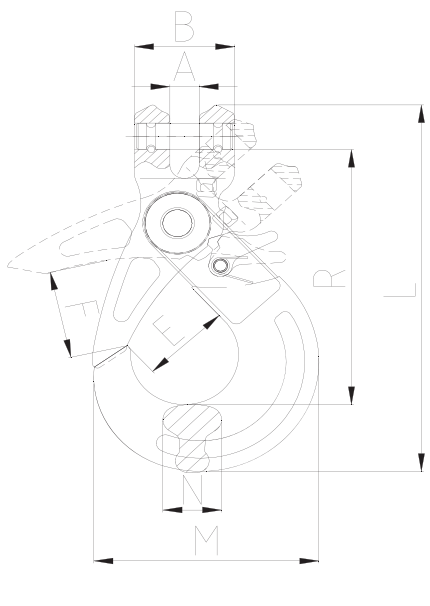

| Item No. | Weight/kg | WLL/T | B.L/T | A±0.5 | B±1 | E±1 | F±1 | R±2 | M±2 | N±1 | L±3 |
| VNT1006-06 | 0.5 | 1.4 | 5.6 | 8 | 32 | 28 | 31 | 96 | 70 | 15 | 131 |
| VNT1006-08 | 0.9 | 2.5 | 10 | 9.5 | 36 | 36 | 40 | 121 | 90 | 20 | 166 |
| VNT1006-10 | 1.6 | 4 | 16 | 12 | 46 | 45 | 50 | 144 | 109 | 26 | 196.5 |
| VNT1006-13 | 2.9 | 6.7 | 26.8 | 15 | 59 | 53.5 | 66 | 182 | 138.5 | 32.5 | 251 |
| VNT1006-16 | 5.8 | 10 | 40 | 18.5 | 70 | 62 | 75 | 220 | 170.5 | 39 | 303 |
| VNT1006-20 | 8.6 | 16 | 64 | 25 | 85 | 76.5 | 80 | 235 | 192.5 | 50 | 337 |
| VNT1006-22 | 12.1 | 19 | 76 | 25.5 | 98 | 80 | 104.6 | 271 | 205 | 52 | 386 |

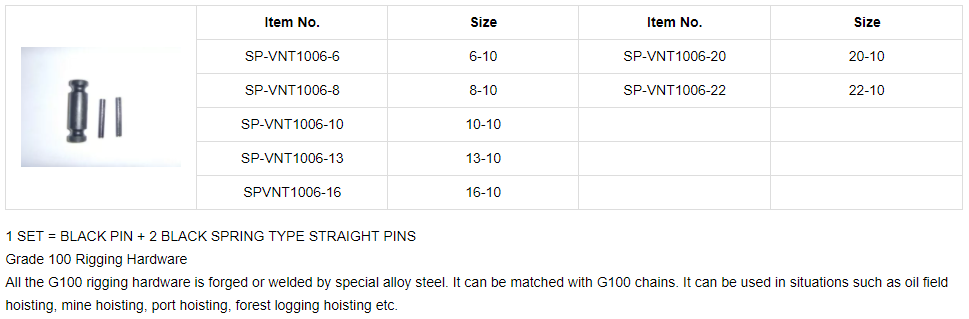

SP-VNT1006-SPARE PART FOR VNT1006(LOAD PIN)
