Brand: VENIT/OEM
VNT1003 G100 Eye Sling Hook with Latch is a High-Strength Steel Hook with its unique eye shape design and locking mechanism to ensure safety and stability during the lifting process.

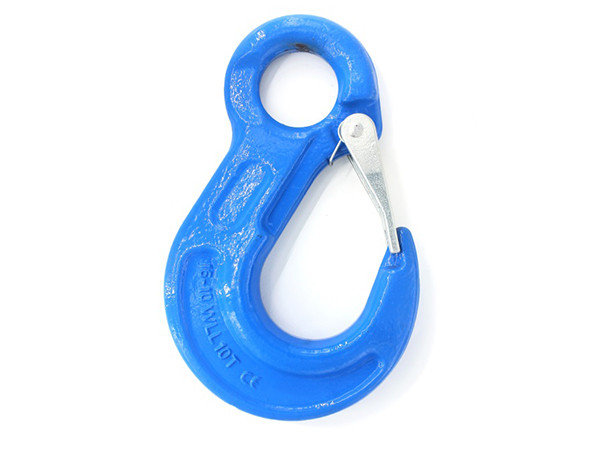

VNT1003 G100 Eye Sling Hook with Latch
The alloy steel eye sling hook with latch has the following features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● Surface treatment: Powder plastified;
● Color code: Blue RAL5015
Part of the eye sling hook is flat, so that the VNT1027-G100 omega ring can go through it for cooperation.
Ultimate load is 4 times the Working Load Limit.

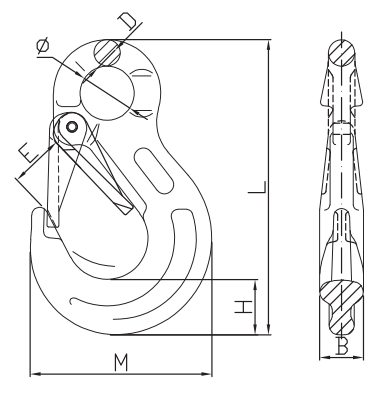

Item No. | Weight/kg | WLL/T | B.L/T | B±1 | D±1 | E±2 | H±1 | Φ±1 | M±2 | L±2.5 |
VNT1003-06 | 0.32 | 1.4 | 5.6 | 16.5 | 10 | 18.5 | 21 | 20.5 | 68 | 111 |
VNT1003-07 | 0.4 | 1.9 | 7.6 | 15 | 11 | 25.5 | 26 | 25 | 86.9 | 137 |
VNT1003-08 | 0.6 | 2.5 | 10 | 19 | 11 | 25 | 27.5 | 25 | 87.6 | 137 |
VNT1003-10 | 1.2 | 4 | 16 | 26 | 16 | 29.5 | 32 | 35 | 106.4 | 171.5 |
VNT1003-13 | 2.2 | 6.7 | 26.8 | 33 | 19 | 38 | 43.5 | 43 | 134 | 219 |
VNT1003-16 | 3.5 | 10 | 40 | 40 | 24.5 | 46 | 50 | 51 | 158 | 260 |
VNT1003-20 | 6.2 | 16 | 64 | 48 | 27 | 52 | 56 | 55 | 190 | 298 |
VNT1003-22 | 11.5 | 19 | 76 | 50 | 29 | 66 | 62 | 60 | 214 | 330 |
VNT1003-26 | 12.2 | 26.5 | 106 | 60 | 35 | 73 | 75 | 70 | 245 | 376 |
VNT1003-32 | 17.5 | 39.3 | 157.2 | 71 | 39 | 87 | 89 | 81.5 | 270 | 458 |

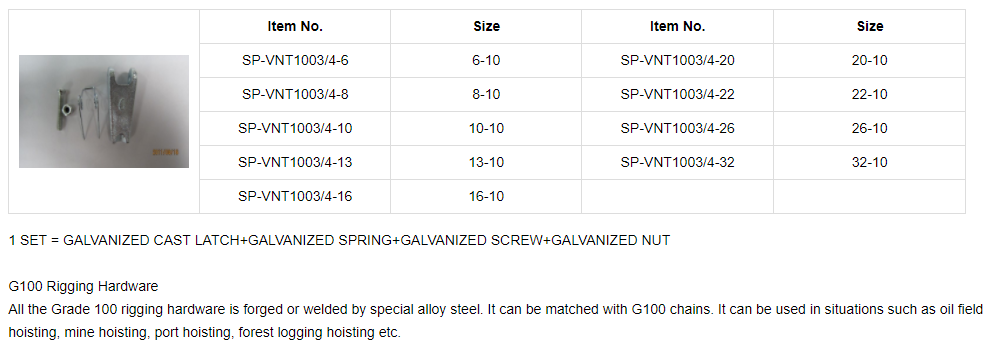

SP-VNT1003&VNT1004-SPARE PART LATCH KIT FOR VNT1003&VNT1004
