Brand: VENIT/OEM
The G100 Eye Foundry Hook undergoes a precision forging process to ensure precise dimensions and smooth finishes. Fast logistics and delivery, contact us for a quote!

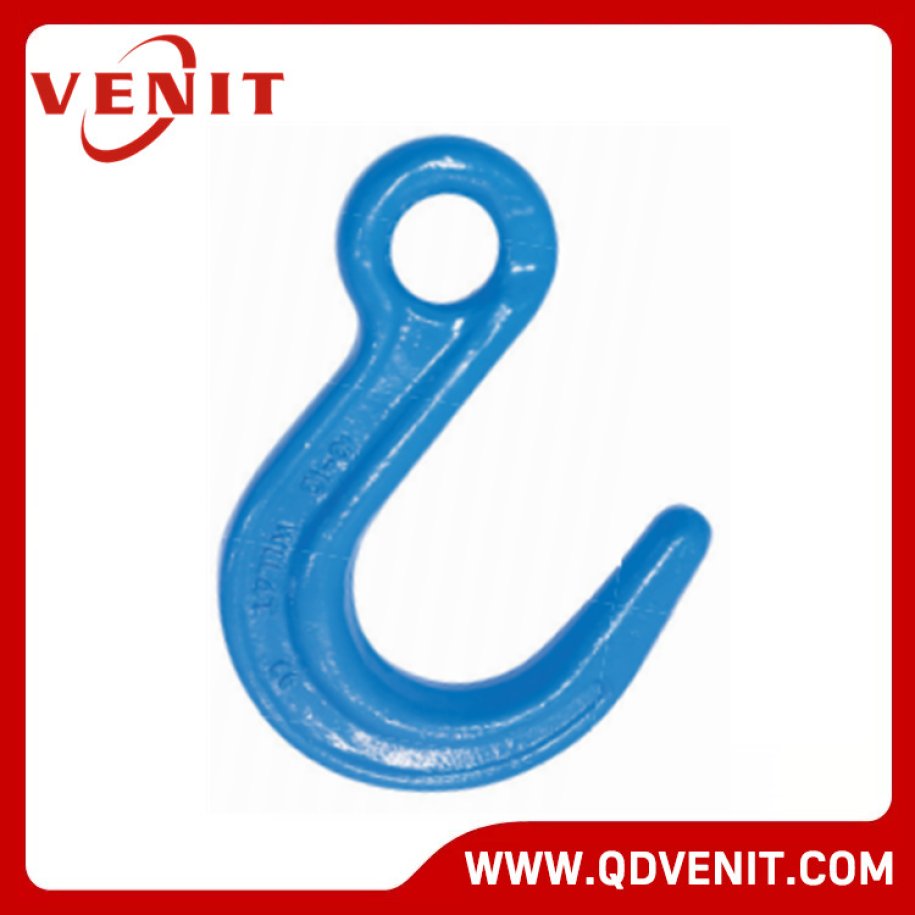

VNT1074 G100 Forged Alloy Steel Eye Foundry Hook
Forged or welded super alloy steel.
It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Powder plastified
Colour: blue RALcode: RAL5015
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the working load limit.
| Item No. | Weight/KG | WLL/T | B.L/T | Φ±1 | L±3 | B±2 | R±2 | E±1 | Φ1±1 | H±2 | M |
| VNT1074-6 | 0.382 | 1.4 | 5.6 | 20.5 | 133 | 100 | 102.7 | 49 | 10 | 17 | 19 |
| VNT1074-8 | 0.72 | 2.4 | 9.6 | 24 | 158.5 | 130 | 120.5 | 62 | 12 | 19 | 27.5 |
| VNT1074-10 | 1.25 | 4 | 16 | 31.5 | 199 | 152.5 | 153.2 | 73 | 15 | 25 | 31 |
| VNT1074-13 | 2.32 | 6.7 | 26.8 | 44 | 241.5 | 186 | 184 | 90 | 19 | 33 | 39.3 |
| VNT1074-16 | 3.45 | 10 | 40 | 49 | 279 | 218 | 216 | 105 | 22 | 37 | 42 |
The eye foundry hook is an excellent choice for rigging and other heavy lifting. VENIT's oversized eye connection allows for the easy insertion of chain or wire rope slings.
G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
