Brand: VENIT/OEM
The Swivel feature allows the Hook to rotate freely around its axis, making it easier to align with the load and reducing the risk of tangling or binding.

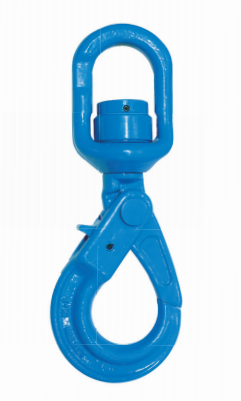

VNT1072 G100 Swivel Self-locking Hook with Bearing
Forged super alloy steel-Quenched and Temered.
The self locking structure of the hook will be automatically closed under the situation of load lifting, so that the lifting is much safer.
It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Powder plastified
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the working load limit.

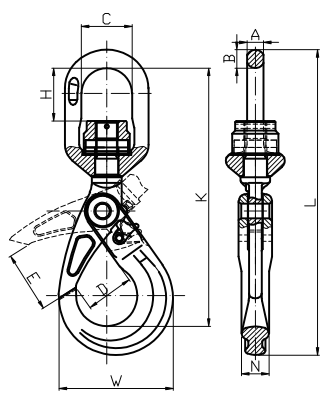

| Item No. | Weight/kg | WLL/T | B.L/T | A±1.5 | B±1.5 | C±2 | D±2 | E±2.5 | N±1 | H±3 | K±3 | L±5 | W±3 |
| VNT1072-06 | 0.67 | 1.4 | 5.6 | 11.5 | 13 | 37 | 27 | 30 | 15 | 32 | 163 | 196.5 | 70 |
| VNT1072-08 | 1.21 | 2.5 | 10 | 13 | 15 | 41 | 35.5 | 40 | 20 | 39 | 202 | 243 | 90 |
| VNT1072-10 | 2.2 | 4 | 16 | 15.5 | 17.5 | 48 | 45 | 48 | 26 | 48 | 244 | 289 | 108 |
| VNT1072-13 | 4.4 | 6.7 | 26.8 | 17 | 19 | 55 | 52.5 | 63 | 32.5 | 57 | 292 | 351 | 138 |
| VNT1072-16 | 7.48 | 10 | 40 | 21.5 | 26 | 62 | 62 | 75 | 38 | 62 | 346 | 422 | 170 |
| VNT1072-20 | 13.75 | 16 | 64 | 26.5 | 28.5 | 76 | 76 | 80 | 50 | 72 | 396 | 487 | 191 |
| VNT1072-22 | 18.81 | 19 | 76 | 33 | 33 | 97 | 79 | 95 | 52 | 97 | 465 | 563 | 208 |
Positive lock latch is selflocking when hook is loaded.
G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
