Brand: VENIT/OEM
The opening of the Clevis C Type Hook is larger than traditional eye sling hooks, allowing for easier engagement and disengagement.

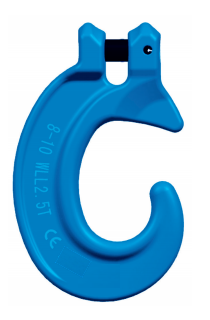

VNT1071 G100 Clevis C Type Hook
Forged super alloy steel-Quenched and Temered.
Suitable for G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified.
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the working load limit.

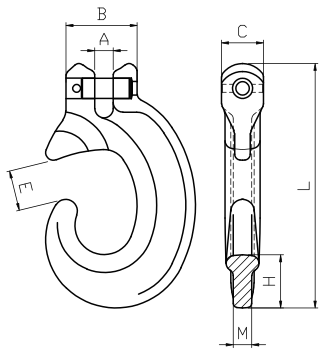

| Item No. | Weight/kg | WLL/T | B.L/T | A±0.5 | B±1 | C±3 | H±1 | L±3 | M±0.5 | E±1 |
| VNT1071-8 | 0.54 | 2.5 | 10 | 9.5 | 36.5 | 21.5 | 27.3 | 125.5 | 9.5 | 20.5 |
| VNT1071-10 | 1.05 | 4 | 16 | 12.5 | 48.5 | 27 | 32.4 | 169 | 12 | 27 |
G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
