Brand: VENIT/OEM
The link features a Double Eye Grab Hook design that provides versatile and secure connections.The Grab Hooks are easy to engage and disengage, allowing for quick and efficient adjustments and maintenance.

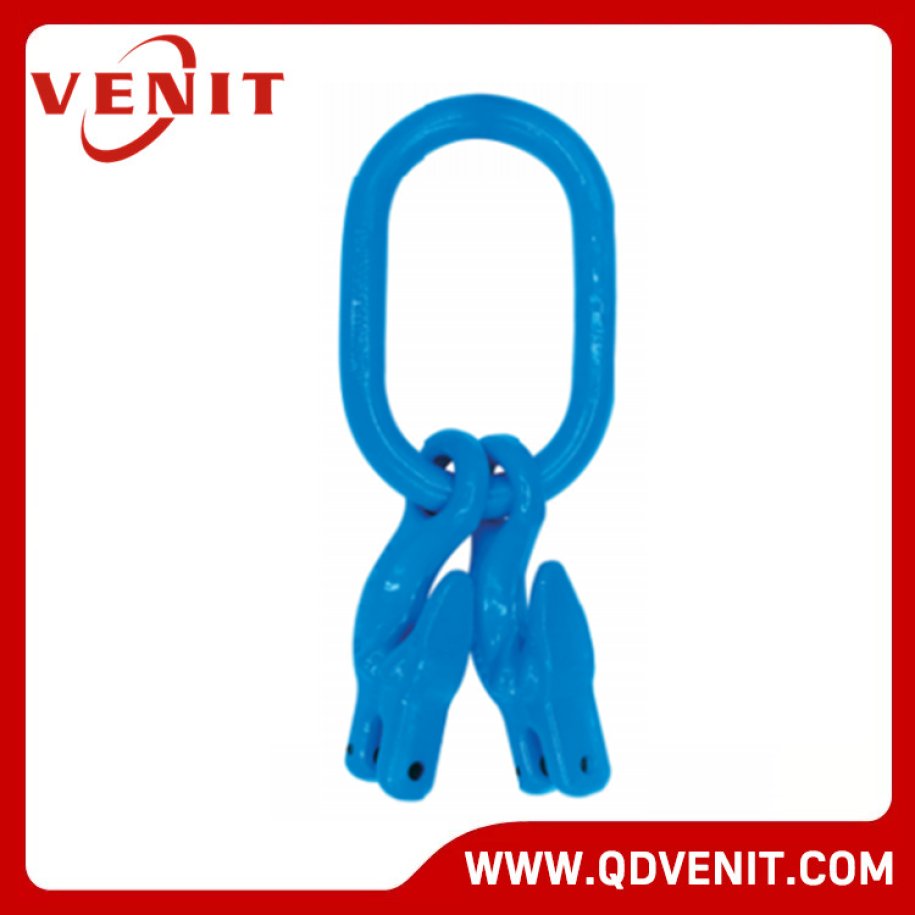

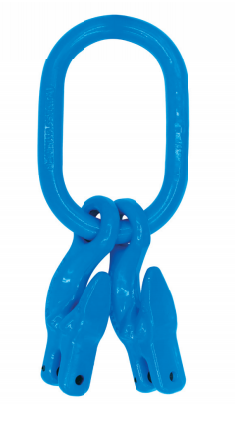

VNT1067 G100 Forged Master Link with Double Eye Grab Hook
Forged super alloy steel-Quenched and Temered.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified.
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the working load limit.

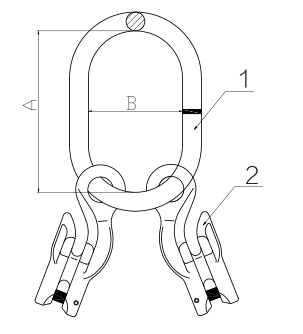

| Item No. | Weight(kg) | WLL(T) | B.L(T) | A | B | φD | Fitting 1 | Fitting2 | Master Link | Hooks |
| VNT1067-6 | 1.04 | 2 | 8 | 120 | 70 | 14 | Master Link | VNT-1051 6-10 ×2 | 6-10 WLL2T CE VENIT | 6-10 WLL1.4T CE VENIT |
| VNT1067-8 | 2.12 | 3.55 | 14.2 | 140 | 80 | 17 | Master Link | VNT-1051 8-10 ×2 | 8-10 WLL3.55T CE VENIT | 8-10 WLL2.5T CE VENIT |
| VNT1067-10 | 4.15 | 5.6 | 22.4 | 160 | 95 | 22 | Master Link | VNT-1051 10-10 ×2 | 10-10 WLL5.6T CE VENIT | 10-10 WLL4T CE VENIT |
| VNT1067-13 | 7 | 9.5 | 38 | 190 | 110 | 25 | Master Link | VNT-1051 13-10 ×2 | 13-10 WLL9.5T CE VENIT | 13-10 WLL6.7T CE VENIT |
| VNT1067-16 | 13.48 | 14 | 56 | 230 | 130 | 32 | Master Link | VNT-1051 16-10 ×2 | 16-10 WLL14T CE VENIT | 16-10 WLL10T CE VENIT |
