Brand: VENIT/OEM
This Clevis Reeving Link is engineered to provide smooth, efficient, and reliable power transmission, making it an ideal choice for various applications across different industries.

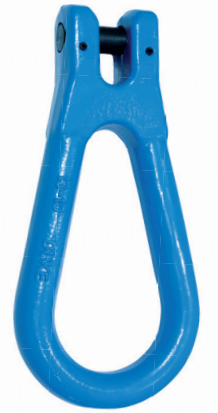

VNT1062 G100 Clevis Reeving Link
Forged super alloy steel-Quenched and Temered.
Suitable for G100 chain.
25% stronger than G80.
Breaking Test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified.
Colour: blue RALcode: RAL5015, other colour is available as per request.
Ultimate load is 4 times the working load limit.

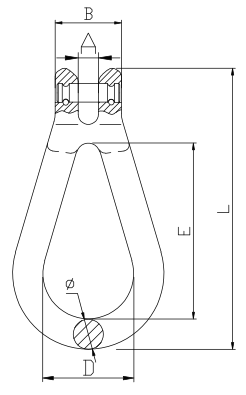

| Item No. | Weight/kg | WLL/T | B.L/T | A±0.5 | B±1.5 | D±1 | E±1.5 | Φ±0.5 | L±2 |
| VNT1062-13 | 1.76 | 6.7 | 26.8 | 16.5 | 55.5 | 66.5 | 137.5 | 22 | 228 |
| VNT1062-16 | 2.8 | 10 | 40 | 19 | 68 | 72 | 165 | 26 | 264 |
G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
