Brand: VENIT/OEM
The VNT1057 G100 Clevis Chain Clutch features a sturdy clevis design that can withstand high torque and shock loads.

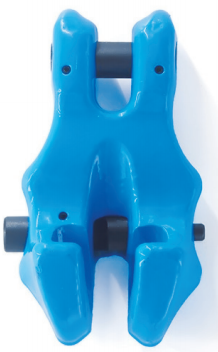

VNT1057 G100 Clevis Chain Clutch with Safety Pin
Forged super alloy steel-Quenched and Temered.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the working load limit.

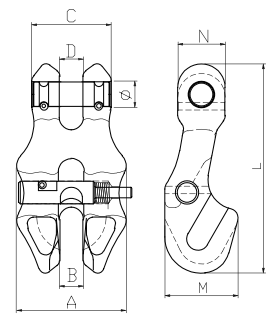

| Item No. | Weight/kg | WLL/T | B.L/T | A±0.5 | B±0.5 | C±0.5 | D±0.5 | M±0.5 | N±0.5 | Φ±0.1 | L±3 |
| VNT1057-6 | 0.25 | 1.4 | 5.6 | 38 | 7.5 | 27 | 7.5 | 29 | 16 | 7.7 | 73 |
| VNT1057-7/8 | 0.41 | 2.5 | 10 | 50 | 9.5 | 33 | 9.5 | 36 | 23 | 9.2 | 92 |
| VNT1057-10 | 0.75 | 4 | 16 | 60 | 11.7 | 43.5 | 11.7 | 45.4 | 36 | 13.3 | 115 |
| VNT1057-13 | 1.67 | 6.7 | 26.8 | 79 | 15 | 55 | 15 | 54 | 34 | 16.3 | 149 |
| VNT1057-16 | 4.2 | 10 | 40 | 98 | 19 | 70 | 19 | 70 | 40 | 19.7 | 184 |
Grade 100 Rigging Hardware
All the G100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
