Brand: VENIT/OEM
This Grab Hook is designed to withstand the most demanding lifting tasks, providing a reliable and safe solution for a wide range of industrial, construction and agricultural applications.

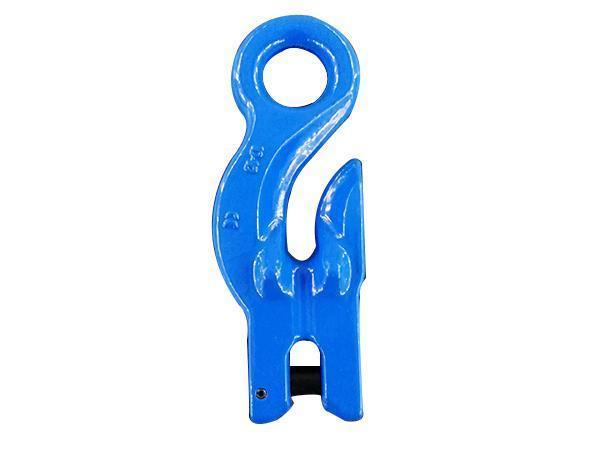

VNT1051 G100 Alloy Steel Eye Grab Hook
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● Forged or welded super alloy steel.
● Suitable for use with G100 chain.
● 25% stronger than G80.
● Meet standard EN1677.
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: Powder plastified
● Colour: blue RALcode: RAL5015
Ultimate load is 4 times the working load limit.

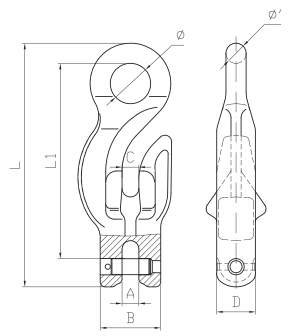

| Item No. | Weight/kg | WLL/T | B.L/T | Φ±2 | A±0.5 | B±2 | C±0.5 | L1±2 | L±3 | Φ’±1 | D±1.5 |
| VNT1051-6 | 0.3 | 1.4 | 5.6 | 18 | 8 | 32 | 8 | 88 | 112 | 9 | 17.5 |
| VNT1051-8 | 0.69 | 2.5 | 10 | 24 | 10 | 36 | 10 | 116 | 145 | 12 | 23 |
| VNT1051-10 | 1.33 | 4 | 16 | 30 | 12.5 | 48 | 12.5 | 145 | 184 | 15 | 28.5 |
| VNT1051-13 | 2.36 | 6.7 | 26.8 | 37 | 15.5 | 59.5 | 15.5 | 178 | 223 | 18 | 35 |
| VNT1051-16 | 4.5 | 10 | 40 | 45 | 19 | 70 | 19 | 216 | 273 | 22 | 42 |
| VNT1051-20 | 9 | 16 | 64 | 58 | 24.5 | 85 | 24.5 | 278 | 351 | 28 | 52 |
