Brand: VENIT/OEM
The VNT1033 G100 Clevis Link is a high-quality lifting component designed for use in heavy-duty applications,engineered to meet the highest standards of strength and durability.

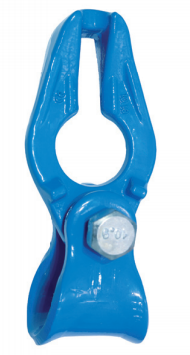

VNT1037 G100 Chain Rope Connector
Forged super alloy steel-Quenched and Temered.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified Colour: blue RALcode: RAL5015,
All load pin are 100% individually inspected and tested.other colour is available as per request.
Ultimate load is 4 times the working load limit.

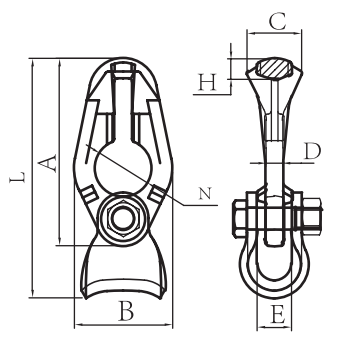

| Item No. | Weight/kg | WLL/T | B.L/T | A±1 | B±1.5 | C±1 | D±1 | E±1 | N±1 | H±1 | L±3 |
| VNT1037-7/8 | 0.63 | 2.5 | 10 | 111 | 70 | 32 | 10 | 20 | 33.5 | 12 | 142 |
| VNT1037-10 | 1.3 | 4 | 16 | 143 | 87.5 | 41 | 11.5 | 20 | 34 | 11.8 | 194.5 |
Not for lifting, only for logging.
Grade 100 Rigging Hardware
All the G100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
