Brand: VENIT/OEM
The VNT1033 G100 Clevis Link is designed for easy installation and removal, making it a convenient choice for a wide range of lifting operations.

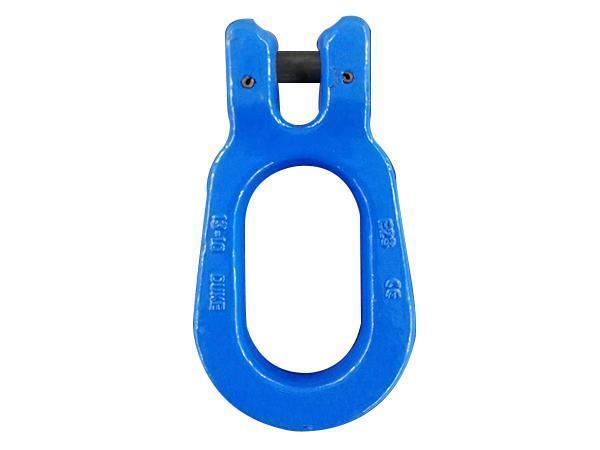

VNT1033 G100 Clevis Link
● Forged or welded super alloy steel.
● It is available in G80.
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
● Each workpiece should pass testing at 2.5 times of working load limit.
● We should carry out sampling and 20000 times of fatigue testing.
● We should carry out strict sampling and breakage testing for each batch of products.
● We should carry out 100% magnetic powder flaw detection.
● 100% of the pin should be tested to ensure that they have the same hardness.
● Meet standard EN1677.
● Surface finish: Powder plastified .
● Colour: blue.
● RALcode: RAL5015, other colour is available as per request.
Ultimate load is 4 times the working load limit.

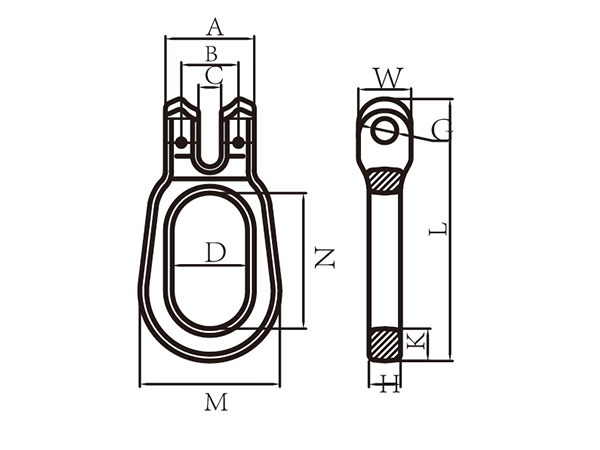

| Item No. | Weight/kg | WLL/T | B.L/T | A±1 | B±0.5 | C±1 | D±1 | M±1.5 | N±2 | H±1 | K±0.5 | L±1.5 | G±0.2 | E±1 |
| VNT1033-13 | 1.36 | 6.7 | 26.8 | 59 | 38 | 15 | 50 | 93 | 90 | 21 | 21.5 | 174 | 16 | 35 |
For Container Lifting
G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
