Brand: VENIT/OEM
The VNT1027 G100 Omega Link enhances load distribution and stability, reducing stress on connecting rods and attached lifting equipment and improving the overall safety of lifting operations.

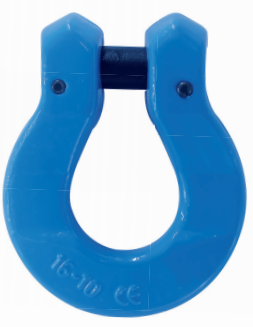

VNT1027 G100 Omega Link
Forged or welded super alloy steel.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Powder plastified
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the working load limit.

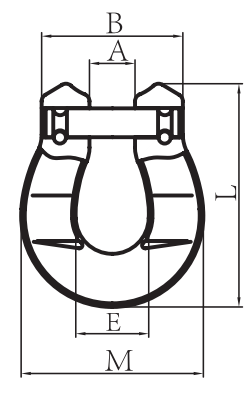

| Item No. | Weight/kg | WLL/T | B.L/T | A±0.5 | B±2 | E±1.5 | M±2 | L±2 |
| VNT1027-06 | 0.12 | 1.4 | 5.6 | 8.5 | 32.5 | 20 | 44 | 55 |
| VNT1027-08 | 0.27 | 2.5 | 10 | 10.5 | 42 | 24 | 60 | 73.5 |
| VNT1027-10 | 0.44 | 4 | 16 | 12.5 | 48.5 | 31 | 70 | 90 |
| VNT1027-13 | 0.89 | 6.7 | 26.8 | 16 | 60 | 38.5 | 90 | 109 |
| VNT1027-16 | 1.77 | 10 | 40 | 19 | 75.5 | 51 | 112 | 141.5 |

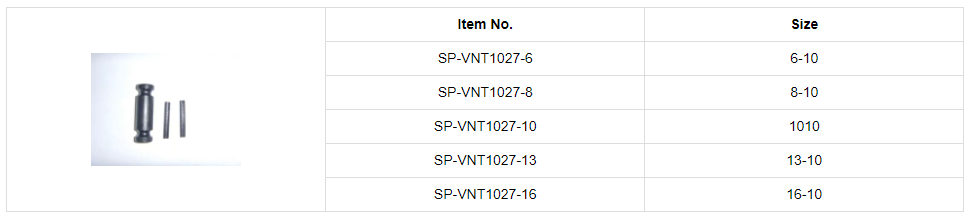

SP-VNT1027 SPARE PART FOR VNT1027
