Brand: VENIT/OEM
The Safety Pins included in the design of our hook provide an additional layer of safety, ensuring that the grab hook is securely attached to the load even under special conditions.

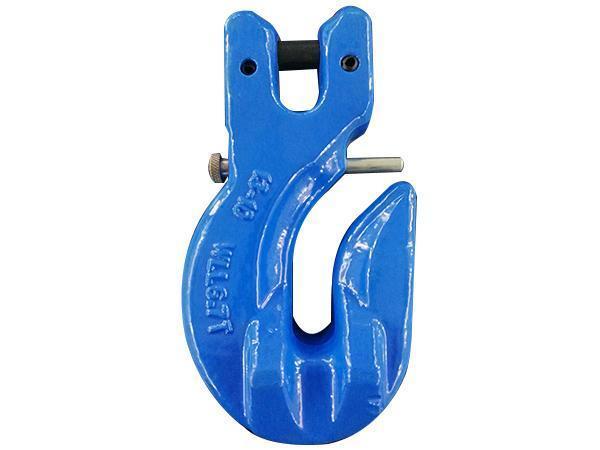

VNT1024 G100 Special Clevis Grab Hook with Safety Pin
Forged or welded super alloy steel.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Powder plastified
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the working load limit.

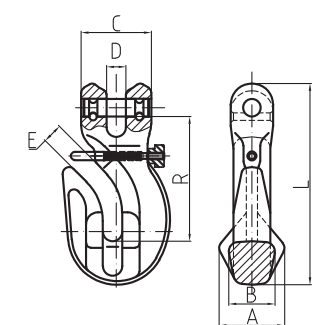

| Item No. | Weight/kg | WLL/T | B.L/T | A±1 | B±0.8 | C±1 | R±1.5 | D±0.5 | E±0.5 | L±2 |
| VNT1024-8 | 0.62 | 2.5 | 10 | 35.5 | 25 | 38 | 66 | 10 | 10.5 | 109 |
| VNT1024-10 | 1.16 | 4 | 16 | 44 | 32 | 46 | 82 | 12 | 13 | 134 |
| VNT1024-13 | 2.6 | 6.7 | 26.8 | 57 | 40 | 59.5 | 107 | 15 | 15.5 | 175.5 |

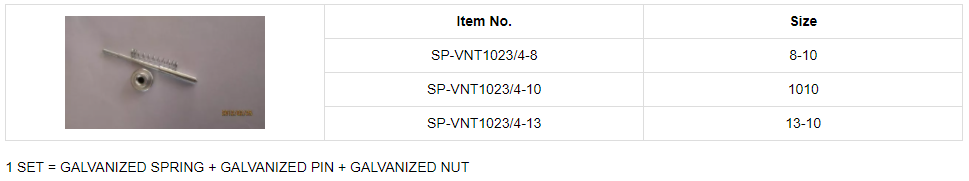

SP-VNT1023&1024-SOARE PART FOR VNT1023&1024(SAFETY PIN)
