Brand: VENIT/OEM
The VNT1023 G100 Special Eye Grab Hook with Safety Pin is a high-quality lifting tool designed for use in a variety of industrial, construction, and agricultural applications.

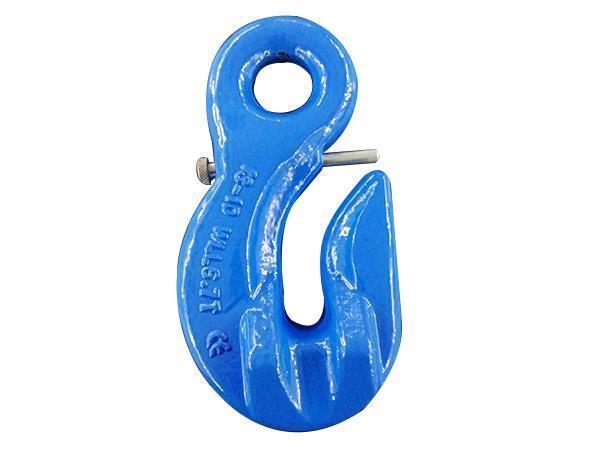

VNT1023 G100 Special Eye Grab Hook with Safety Pin
The locking pin grab hook has the following features
● It can adjust the length of chains;
● It has a safety pin so that it is safer;
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: power plastified
●Colour: blue RALcode: RAL5015
●All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the working load limit.

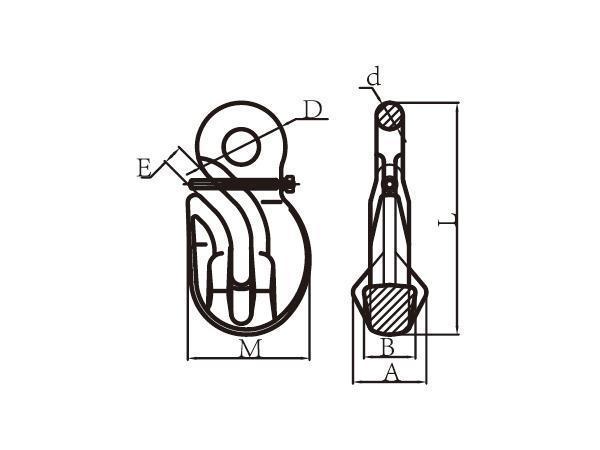

Item No. | Weight/kg | WLL/T | B.L/T | A±1 | B±0.8 | d±0.5 | D±0.5 | E±0.5 | L±2 |
VNT1023-8 | 0.5 | 2.5 | 10 | 35 | 25 | 12 | 16.5 | 10.5 | 110 |
VNT1023-10 | 1.0 | 4 | 16 | 44 | 32 | 15 | 21 | 13 | 136.5 |
VNT1023-13 | 2.2 | 6.7 | 26.8 | 57 | 40 | 20.5 | 27.5 | 15.5 | 180 |
