Brand: VENIT/OEM
The hinged design allows easy and safe connection to the lifting chain or other lifting equipment, ensuring that the hook can be connected and disconnected quickly and efficiently, minimizing downtime.

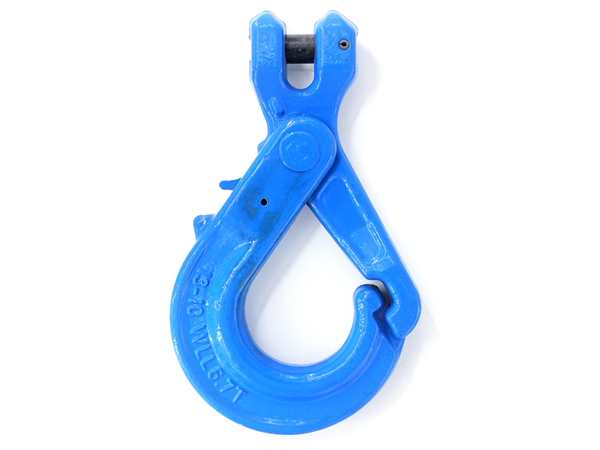

VNT1017 G100 Special Clevis Self-locking Hook
This Clevis Locking Hook Is Perfect For Use On Lifting Gear.
These Are A High Quality Piece Of Lifting Gear, Mainly Used In The Lifting Gear Industry For Chain Slings.
These Clevis Self Locking Hooks Are An Excellent Product Because Of The Added Safety Feature Of The Self Locking Mechanism And The Secure Latch Grip.
The Latch Will Close Automatically Under Load And The Spring Release Trigger Will Not Operate Whilst The Hook Is Under Pressure.
Please Note We Supply A Huge Variety Of Lifting Gear
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chain;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying;
● Color code: Blue RAL5015.
Ultimate load is 4 times the working load limit.

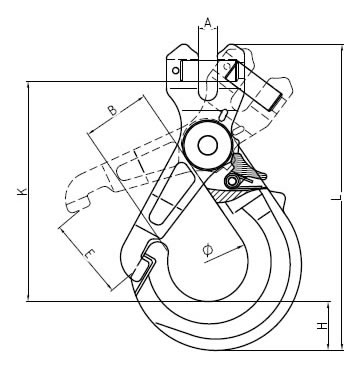

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A±0.5 | B±1.5 | E±2 | Φ±2 | H±1 | K±3 | L±3 |
| VNT1017-8 | 0.75 | 2.5 | 10 | 9.5 | 37.5 | 35 | 45 | 21 | 118 | 165 |
| VNT1017-10 | 1.42 | 4 | 16 | 12.5 | 48 | 46 | 56 | 30 | 150 | 204 |
| VNT1017-13 | 2.56 | 6.7 | 26.8 | 15 | 52 | 56 | 64 | 39 | 176 | 244 |
| VNT1017-16 | 4.21 | 10 | 40 | 18.5 | 70 | 86 | 80 | 46.3 | 250 | 288 |
