Brand: VENIT/OEM
The VNT1016 G100 Hook features a special eye design that allows for easy and secure connections to lifting chains, ropes, or other lifting equipment.

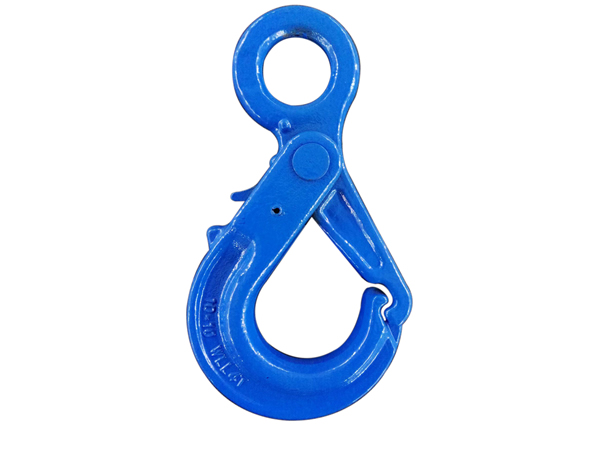

VNT1016 G100 Special Eye Self-Locking Hook
Forged super alloy steel-Quenched and Temered.
Suitable for G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified.
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
Ultimate load is 4 times the working load limit.

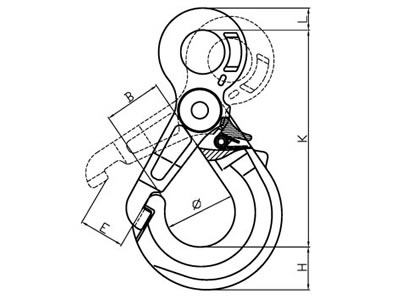

Item No. | Weight/kg | WLL/T | B.L/T | B±1.5 | D±1.5 | E±2 | K±2 | H±1 | L±1 | Φ±2 |
VNT1016-08 | 0.81 | 2.5 | 10 | 37.5 | 27 | 35 | 137 | 21 | 12 | 45 |
VNT1016-10 | 1.41 | 4 | 16 | 48 | 34.5 | 46 | 169 | 30 | 15 | 56 |
VNT1016-13 | 2.61 | 6.7 | 26.8 | 52 | 40 | 56 | 205 | 39 | 20 | 64 |
VNT1016-16 | 4.45 | 10 | 40 | 70 | 50 | 86 | 252 | 46.3 | 27 | 80 |
