Brand: VENIT/OEM
Introducing the VNT1015 G100 Master Link Assembly, a sophisticated and reliable industrial component designed to meet the demands of heavy-duty lifting and connecting applications.

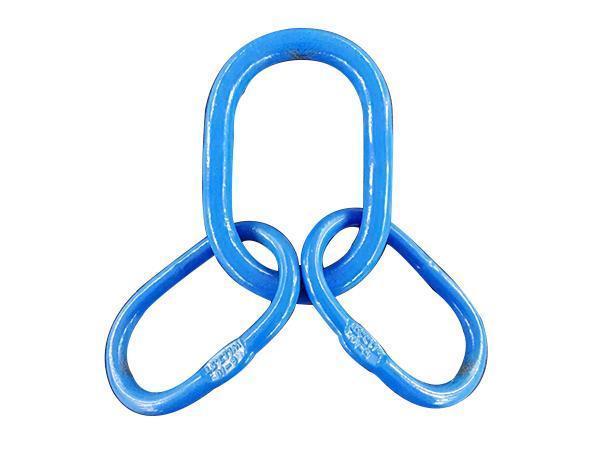

VNT1015 G100 Master Link Assembly
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
● It can be matched with G100 chain.
● The performance is increased by 25% compared with G80 products.
● Each work piece should pass testing at 2.5 times of working load limit.
● We should carry out sampling and 20000 times of fatigue testing.
● We should carry out strict sampling and breakage testing for each batch of products.
● We should carry out 100% magnetic powder flaw detection.
● Surface treatment: plastics spraying.
● Color code: Blue RAL5015.
● All sizes: Main Link: forged,Sub link: welded
Ultimate load is 4 times the working load limit.

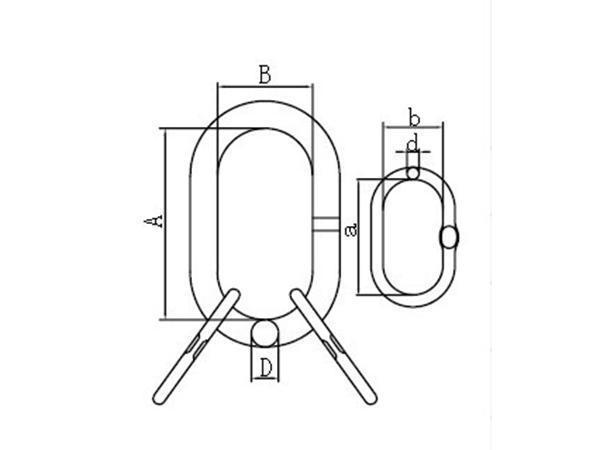

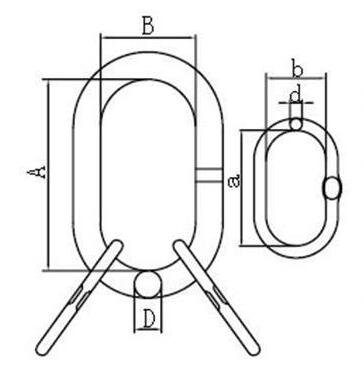

| Item No. | Weight/kg | WLL/T | B.L/T | A | B | D | a | b | d |
| VNT1015-06 | 1.8 | 3.5 | 14 | 15±5 | 90±4 | 19±1.5 | 120±5 | 70±4 | 14±1.5 |
| VNT1015-08 | 3.0 | 5 | 20 | 160±5 | 95±4 | 22±1.5 | 140±5 | 80±4 | 17±1.5 |
| VNT1015-10 | 6.5 | 11.5 | 46 | 200±5 | 120±5 | 30±1.5 | 160±5 | 95±4 | 22±1.5 |
| VNT1015-13 | 15 | 17 | 68 | 250±6 | 150±5 | 40±2 | 190±5 | 110±4 | 25±1.5 |
| VNT1015-16 | 23 | 28 | 112 | 300±6 | 200±5 | 50±2 | 200±5 | 120±5 | 32±2 |
