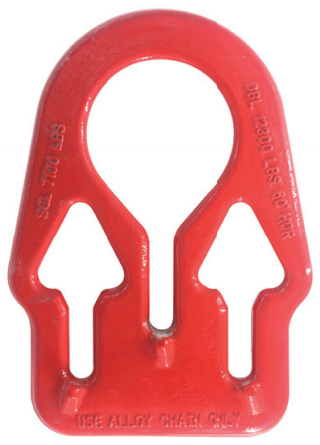

VNT558 G80 Type A Master Link
Forged or welded super alloy steel.
Suitable for use with G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All load pin are 100% individually inspected and tested.
As master link in chain sling.
Very convenient to connect chain.
Mininum Ultimate Load is 4 times the Working Load Limit.

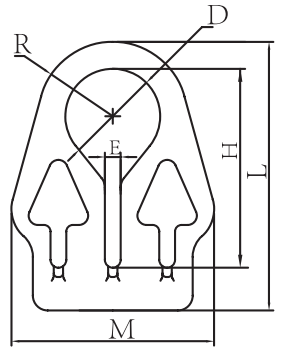

| Item No. | Weight/kg | WLL/LBS | B.L/LBS | E | D | R | H | M | L |
| VNT558-7/32 | 0.46 | 2100 | 8400 | 8 | 51 | 40 | 107 | 109 | 144.5 |
| VNT558-9/32 | 1.30 | 3500 | 14000 | 10 | 78.6 | 56.8 | 151 | 133 | 196 |
| VNT558-3/8 | 1.89 | 7100 | 28400 | 12.5 | 81 | 69.5 | 148.5 | 167 | 234 |
