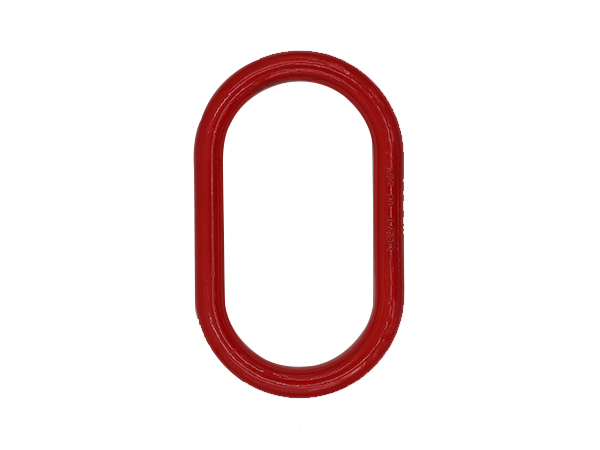

VNT454 G80 European Type Forged Master Link
1. It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
2. Each workpiece should pass testing at 2 times of working load limit
3. We should carry out strict sampling and breakage testing for each batch of products;
4. We should carry out 100% magnetic powder flaw detection
5. Surface treatment: plastics spraying
6. Color code: red RAL3020/yellow RAL1003.
7. For G80 1 leg or 2 leg chain slings.
8. All specifications are forged
9. Large inner width for larger lifting hooks
10. Flatten only if there is a clear requirement.

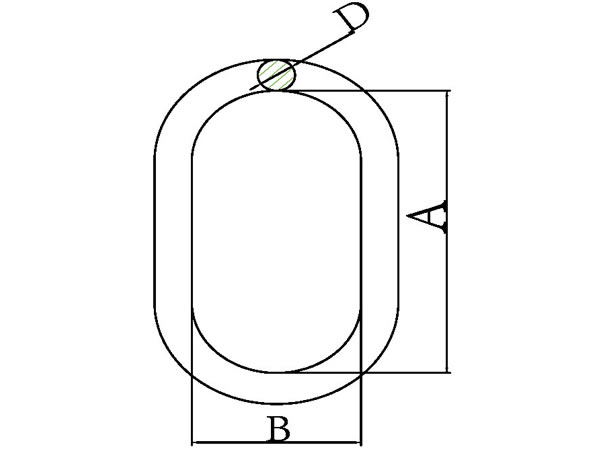

| Item No. | Weight(KG) | WLL(T) | Dimension(MM) | ||
| A | B | D | |||
| VNT454-16B7 | 0.86 | 3.2 | 190 | 100 | 16 |
| VNT454-22B7 | 1.83 | 7 | 210 | 110 | 22 |
| VNT454-Y025 | 3.53 | 6.4 | 300 | 210 | 25 |
| VNT454-Y032 | 5.94 | 11 | 300 | 210 | 32 |
| VNT454-28B7 | 3.8 | 11.5 | 270 | 140 | 28 |
| VNT454-28B6 | 3.06 | 14.2 | 210 | 110 | 28 |
| VNT454-32B6 | 5.05 | 17 | 270 | 140 | 32 |
| VNT454-38B7 | 10.78 | 19 | 420 | 220 | 38 |
| VNT454-38B6 | 7.29 | 28 | 270 | 140 | 38 |
| VNT454-45B7 | 17.06 | 27 | 470 | 250 | 45 |
| VNT454-50B6 | 17.65 | 45 | 380 | 200 | 50 |
| VNT454-60B6 | 28.85 | 65 | 430 | 220 | 60 |
