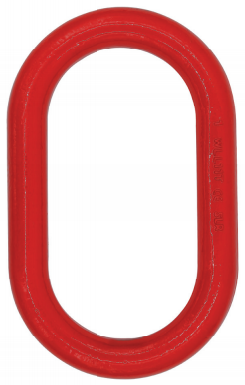

VNT133 G80 Master Link
Made of super alloy steel-Quenched and Tempered.
Individually proof test at MPF.
Breaking Test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified.
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
For chain sling: Minimum Ultimate Load is 4 times the Working Load Limit.
For wire rope sling: Minimum Ultimate Load is 5 times the Working Load Limit.

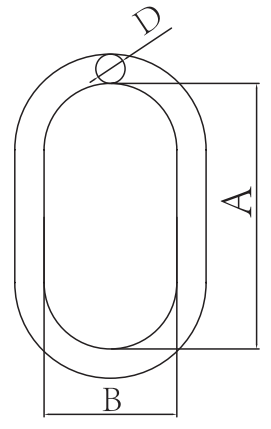

| Item No. | Weight(KG) | WLL(T) | B.L(T) | Dimension(MM) | ||
| A | B | D | ||||
| VNT133-4T | 0.7 | 4 | 16 | 150 | 75 | 16 |
| VNT133-8.5T | 1.5 | 8.5 | 34 | 162 | 90 | 22 |
| VNT133-5.8T | 2.3 | 5.8 | 23.2 | 270 | 140 | 22 |
| VNT133-14T | 3 | 14 | 56 | 200 | 110 | 28 |
| VNT133-11.8T | 3.8 | 11.8 | 47.2 | 270 | 140 | 28 |
| VNT133-17.1T | 5.05 | 17.1 | 68.4 | 270 | 140 | 32 |
| VNT133-23T | 6.5 | 23 | 92 | 270 | 140 | 36 |
| VNT133-28.1T | 8.5 | 28.1 | 112.4 | 280 | 155 | 40 |
| VNT133-35T | 12.2 | 35 | 140 | 320 | 175 | 45 |
| VNT133-45T | 16.6 | 45 | 180 | 350 | 195 | 50 |
| VNT133-60T | 29.2 | 60 | 240 | 410 | 220 | 60 |
| VNT133-85T | 44.3 | 85 | 340 | 450 | 250 | 70 |
| VNT133-150T | 86 | 150 | 600 | 500 | 300 | 90 |
