VNT134 G80 Master Link Assembly
Made of super alloy steel-Quenched and Tempered.
Individually proof test at MPF.
Breaking Test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified.
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
For chain sling: Minimum Ultimate Load is 4 times the Working Load Limit.
For wire rope sling: Minimum Ultimate Load is 5 times the Working Load Limit.

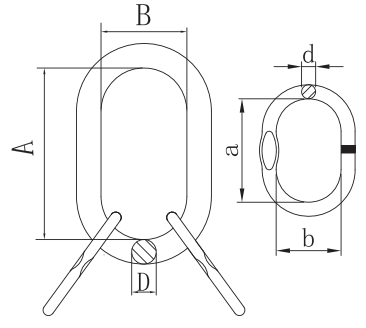

| Item No. | Weight(KG) | WLL(T) | Dimension(MM) | |||||
| A | B | D | a | b | d | |||
| VNT134-4T | 1.3 | 4 | 150 | 75 | 16 | 90 | 50 | 13 |
| VNT134-5.8T | 3.8 | 5.8 | 270 | 140 | 22 | 150 | 75 | 16 |
| VNT134-8.5T | 3.6 | 8.5 | 162 | 90 | 22 | 140 | 70 | 20 |
| VNT134-14.5T | 5.5 | 14.5 | 200 | 110 | 28 | 140 | 70 | 22 |
| VNT134-11.8T | 5.9 | 11.8 | 270 | 140 | 28 | 140 | 70 | 20 |
| VNT134-17.1T | 9.7 | 17.1 | 270 | 140 | 32 | 190 | 100 | 26 |
| VNT134-23T | 11.9 | 23 | 270 | 140 | 36 | 185 | 90 | 28 |
| VNT134-28.1T | 16.4 | 28.1 | 280 | 155 | 40 | 200 | 110 | 32 |
| VNT134-35T | 23.5 | 35 | 320 | 175 | 45 | 225 | 125 | 36 |
| VNT134-45T | 32.3 | 45 | 350 | 195 | 50 | 260 | 130 | 40 |
| VNT134-60T | 63.9 | 60 | 410 | 220 | 60 | 350 | 195 | 50 |
| VNT134-85T | 102.6 | 85 | 450 | 250 | 70 | 410 | 220 | 60 |
| VNT134-150T | 158 | 150 | 500 | 300 | 90 | 400 | 200 | 70 |
