VNT488 G80 European Type Master Link Assembly

banner
Product Details

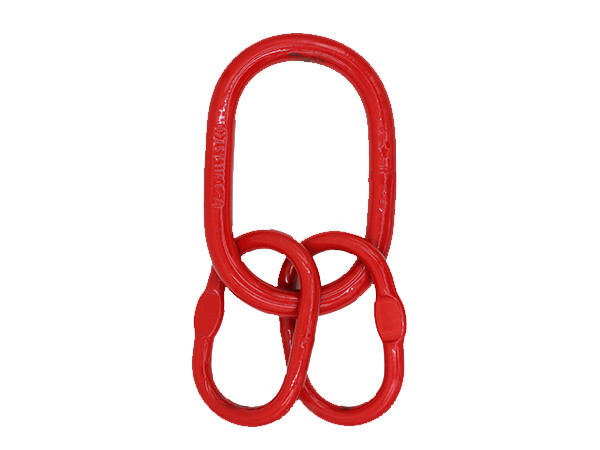

VNT488 G80 European Type Master Link Assembly


Super alloy steel - Quenched and tempered.

Individually proof tested at 2 times Working Load Limit.

Breaking test and fatigue test.

100% Magnaflux Crack Detection.

Surface finish: Power plastified

Colour: Yellow or Red RALcode: RAL1003 or RAL3020.

All load pin are 100% individually inspected and tested.

Suitable for 3 or 4 legs G80 chain sling.

Mininum Ultimate Load is 4 times the Working Load Limit.

BLACK WORD AREAS: MAIN LINK: WELDED SUB LINKS: WELDED

RED WORD AREAS: MAIN LINK: FORGED SUB LINKS: WELDED

Bigger sub links

ITEM VNT488-7 to VNT488-16: there will be pressing flat only on request.

ITEM VNT488-20 to VNT488-26: there is no pressing flat.

The pressing flat for use with VNT002 G80 OMEGA LINK.

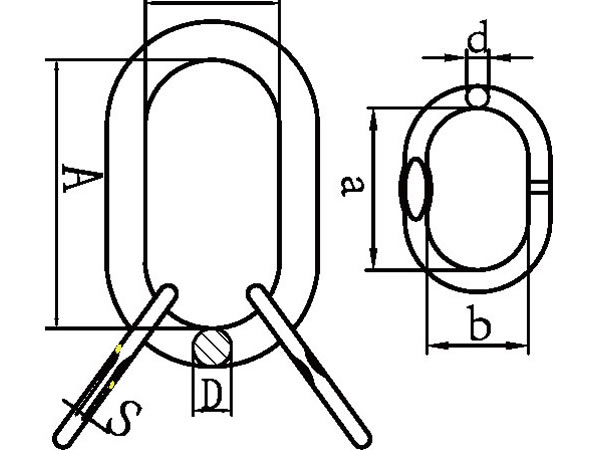

Item No.G80 EN818-2 Chain MMWeight(KG)WLL(T)Dimension(MM)
For 3 or 4 Leg SlingABDabdS×H
VNT488-771.905.5160952011060137
VNT488-882.826.65160952214080167
VNT488-10104.879.419011026160952011
VNT488-13139.3814.2230130321901102613
VNT488-161615.2822.3275150382301303016
VNT488-202021.7833.53401804523013032-
VNT488-222231.5240.83501905027515038-
VNT488-262648.9256.84002005634018045-
