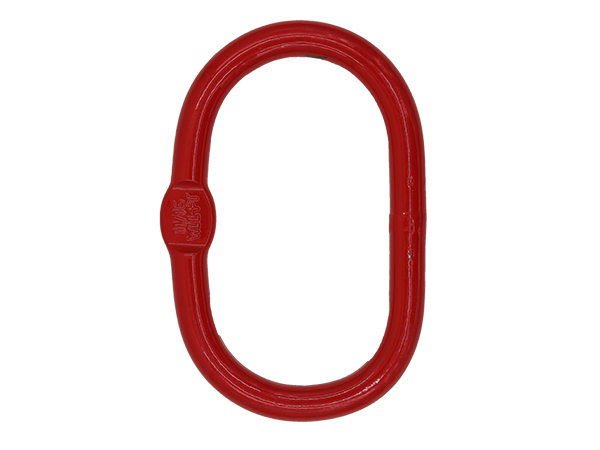

VNT093 A-344 G80 US Type Welded Master Link with Flat
Forged super alloy steel-Quenched and Tempered.
Individually proof tested at MPF.
Breaking Test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All sizes are welded.
For chain sling: Minimum Ultimate load is 4 times the Working Load Limit.
For steel rope sling: Minimum Ultimate load is 5 times the Working Load Limit.
There will be pressing flat only on request.
The pressing flat is for use with VNT002 G80 OMEGA LINK.

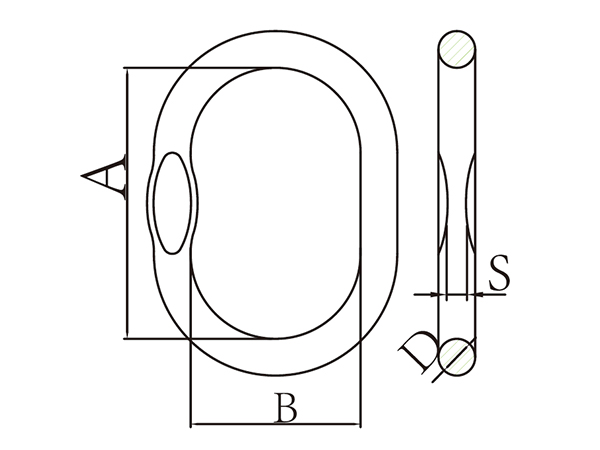

| Item No. | Weight kg | G80 Chain | WLL 1 Leg(T) | WLL 2 leg 0-45°(T) | WLL Rope(T) | A | B | D | S |
| VNT093-7/16 | 0.27 | 1/4 | 1.12 | 1.6 | 1.6 | 100±4 | 60±4 | 12±0.5 | 6+0.5 |
| 9/32 | 1.5 | -- | |||||||
| VNT093-1/2 | 0.38 | 9/32 | 1.5 | 2.12 | 2.5 | 100±4 | 60±4 | 14±0.5 | 7.6±0.5 |
| 5/16 | 2 | -- | |||||||
| VNT093-11/16 | 0.85 | 5/16 | 2 | 2.8 | 4 | 160±5 | 90±4 | 18±0.5 | 8.4±0.5 |
| 3/8 | 3.15 | -- | |||||||
| VNT093-3/4 | 1.2 | 3/8 | 3.15 | 4.25 | 6.5 | 160±5 | 90±4 | 20±0.5 | 10.5±0.5 |
| 1/2 | 5.3 | -- | |||||||
| VNT093-7/8 | 1.63 | 1/2 | 5.3 | 7.5 | 8 | 180±5 | 100±4 | 22±1 | 13.5±0.5 |
| 5/8 | 8 | -- | |||||||
| VNT093-1 | 2.13 | 5/8 | 8 | 11.2 | 11.5 | 180±5 | 100±4 | 25±1 | 16.5±0.5 |
| 19mm | 11.2 | -- | |||||||
| VNT093-1-1/8 | 3.81 | 3/4 | 12.5 | -- | 11.8 | 270±6 | 140±5 | 28±1 | 19±0.5 |
| VNT093-1-1/4 | 5.05 | 19mm | 11.2 | 16 | 16 | 270±6 | 140±5 | 32±1 | 19±0.5 |
| 7/8 | 15 | -- | |||||||
| VNT093-1-3/8 | 6.83 | 7/8 | 15 | 21.2 | 24 | 285±6 | 155±5 | 36±1 | 20±0.5 |
| 1 | 21.2 | -- | |||||||
| VNT093-1-1/2 | 8.9 | 28mm | 25 | -- | 25 | 300±6 | 160±5 | 40±1 | 26±0.5 |
| VNT093-1-3/4 | 12.8 | 1 | 21.2 | 30 | 31.5 | 340±7 | 180±5 | 45±1 | 26±0.5 |
| 1 1/4 | 31.5 | -- | |||||||
| VNT093-2 | 17.3 | 1 1/4 | 31.5 | 45 | 45 | 390±7 | 215±6 | 51±1 | 32±0.5 |
