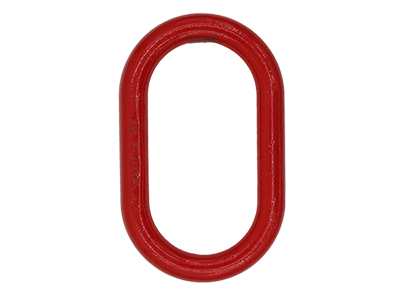

VNT091 A-342 G80 US Type Forged Master Link


● The forged master link is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.

● Each workpiece should pass testing at 2 times of working load limit.

● We should carry out strict sampling and breakage testing for each batch of products and 100% magnetic particle inspection.

● Surface treatment: plastic coating.

● Color code: RED RAL3020 / YELLOW RAL1003.

● All sizes are forged.  Yello area: WLL

● There will be pressing flat only on request.

● For chain slings: Minimum Ultimate load is 4 times the Working Load Limit.

●For steel rope sling: Minimum Ultimate load is 5 times the Working Load Limit.


Item No.

Weight
kg

G80 Chain

WLL
1 Leg(T)

WLL
2 leg 0-45°(T)

WLL
Rope(T)

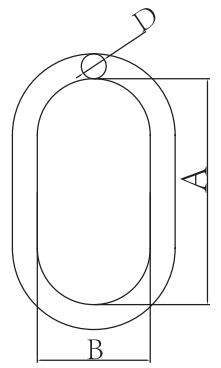

A

B

D

VNT091-1/2

0.36

1/4

1.5

2.12

3.4

127

63.5

13

5/16

2

2.8

VNT091-5/8

0.7

5/16

2

2.8

4

152

76

16

3/8

3.15

-

VNT091-3/4

0.93

3/8

3.15

4.25

5.6

140

70

19

VNT091-7/8

1.5

3/8

3.15

4.25

6.9

160

90

22

1/2

5.3

-

VNT091-1

2.1

1/2

5.3

7.5

11.8

178

89

25

5/8

8

11.2

VNT091-1-1/4

4.24

5/8

8

11.2

17.7

222

111

32

3/4

11.2

16

VNT091-1-1/2

7.17

3/4

11.2

16

27.7

267

135

38

7/8

15

21.2

VNT091-1-3/4

11.55

7/8

15

21.2

38.5

305

152

45

1

21.2

-

VNT091-2

17.2

1

21.2

30

46.5

355

178

51

1 1/4

31.5

-

VNT091-2-1/4

24.5

1 1/4

31.5

45

64.9

406

203

57

VNT091-2-1/2

30.9

-

-

-

72.6

406

203

63.5

VNT091-2-3/4

39.5

-

-

-

98.4

406

241

70

VNT091-3

50.34

-

-

-

103

457

228

76

VNT091-3-1/4

65.68

-

-

-

119

508

254

82.5

VNT091-3-1/2

90.24

-

-

-

126

610

305

89

VNT091-3-3/4

89.27

-

-

-

152

508

254

95

VNT091-4

103.43

-

-

-

169

508

254

102

VNT091-4-1/4

137

-

-

-

176

610

305

108

VNT091-4-1/2

178

-

-

-

184

710

355

115

VNT091-4-3/4

196

-

-

-

206

710

355

120

VNT091-5

234

-

-

-

226

760

380

127
