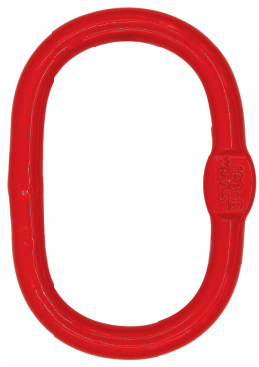

VNT487 G80 Forged European Type Master Link
Super alloy steel - Quenched and tempered.
Individually proof tested at 2 times Working Load Limit.
Breaking test and fatigue test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All load pin are 100% individually inspected and tested.
Suitable for 1 or 2 legs G80 chain sling.
Mininum Ultimate Load is 4 times the Working Load Limit.
BLACK WORD AREAS: WELDED
RED WORD AREAS: FORGED
Bigger length, bigger width.
ITEM VNT487-87 to VNT487-2016: there will be pressing flat only on request.
ITEM VNT487-2220 to VNT487-3632: there is no pressing flat.
The pressing flat for use with VNT002 G80 OMEGA LINK.

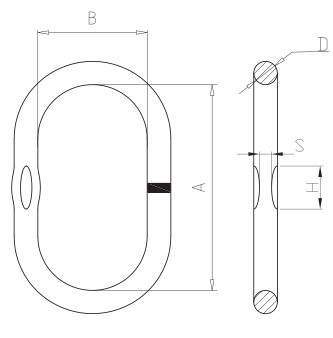

| Item No. | G80 EN818-2 Chain | Weight(KG) | WLL(T) | Dimension(MM) | ||||
| For 1 Leg MM | For 2 Leg MM | A | B | D | S×H | |||
| VNT487-87 | 8 | 7 | 0.38 | 2.7 | 120 | 70 | 13 | 7*25 |
| VNT487-108 | 10 | 8 | 0.67 | 3.5 | 140 | 80 | 17 | 8*28 |
| VNT487-1310 | 13 | 10 | 1.20 | 5.5 | 160 | 95 | 20 | 11*35 |
| VNT487-1613 | 16 | 13 | 2.45 | 9.4 | 190 | 110 | 26 | 11*43 |
| VNT487-2016 | 20 | 16 | 4.48 | 14.2 | 230 | 130 | 32 | 11*55 |
| VNT487-2220 | 22 | 20 | 7.50 | 22.30 | 275 | 150 | 38 | - |
| VNT487-2622 | 26 | 22 | 12.80 | 33.50 | 340 | 180 | 45 | - |
| VNT487-3226 | 32 | 26 | 16.55 | 40.8 | 350 | 190 | 50 | - |
| VNT487-3632 | 36 | 32 | 23.28 | 56.9 | 400 | 200 | 56 | - |
