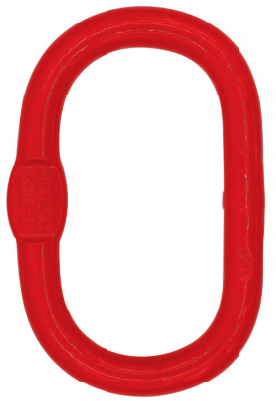

VNT095 G80 Welded Master Link with Flat
Made of super alloy steel-Quenched and Tempered.
Individually proof test at MPF.
Breaking Test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified.
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Red Area size: Master Link: Forged
Black Area size: Master Link: Welded
For chain sling: Mininum Ultimate Load is 4 times the Working Load Limit.
For wire rope sling: Mininum Ultimate Load is 5 times the Working Load Limit.

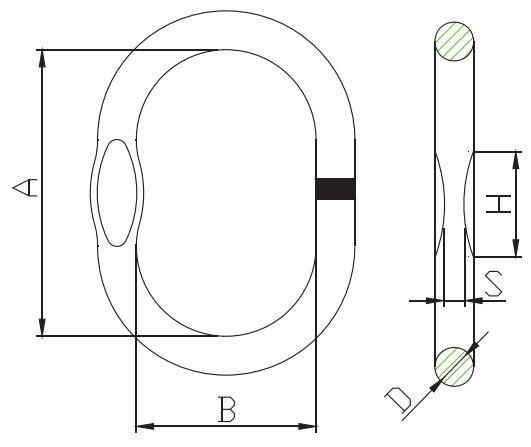

| ITEM NO. | WEIGHT/KG | WLL/T | A | B | D | S | H |
| VNT095-11B4 | 0.18 | 2.1 | 83±4 | 40±3 | 11±0.5 | 6+0.5 | 40 |
| VNT095-13B5 | 0.3 | 2.6 | 95±4 | 51±4 | 13±0.5 | 7+0.5 | 50 |
| VNT095-13B6 | 0.35 | 2.4 | 115±5 | 60±4 | 13±0.5 | 7+0.5 | 50 |
| VNT095-16B6 | 0.6 | 3.8 | 120±5 | 70±4 | 16±0.5 | 9±0.5 | 70 |
| VNT095-16B7 | 0.86 | 2.8 | 190±5 | 100±4 | 16±0.5 | 9±0.5 | 70 |
| VNT095-20B6 | 1.1 | 6.4 | 150±5 | 80±4 | 20±0.5 | 11±0.5 | 50 |
| VNT095-20B6 B | 1.2 | 6.4 | 160±5 | 90±4 | 20±1 | 11±0.5 | 50 |
| VNT095-20B7 | 1.25 | 5.8 | 170±5 | 90±4 | 20±0.5 | 11±0.5 | 70 |
| VNT095-20B7 B | 1.25 | 5.8 | 160±5 | 90±4 | 20±1 | 11±0.5 | 70 |
| VNT095-22B6 | 1.53 | 7.6 | 170±5 | 90±4 | 22±1 | 12±0.5 | 70 |
| VNT095-22B6 B | 1.53 | 7.6 | 160±5 | 90±4 | 22±1 | 12±0.5 | 70 |
| VNT095-22B7 | 1.83 | 6.4 | 210±6 | 110±5 | 22±1 | 12±0.5 | 70 |
| VNT095-22B7 B | 1.83 | 6.4 | 210±6 | 110±5 | 22±1 | 12±0.5 | 70 |
| VNT095-22B8 | 2.32 | 5.8 | 210±6 | 140±5 | 22±1 | 12±0.5 | 70 |
| VNT095-25B6 | 2.21 | 10 | 190±5 | 100±5 | 25±1 | 13±0.5 | 80 |
| VNT095-25B6 B | 2.21 | 10 | 190±5 | 102±5 | 25±1 | 13±0.5 | 80 |
| VNT095-25B7 | 3 | 8 | 270±6 | 140±5 | 25±1 | 13±0.5 | 80 |
| VNT095-28B6 | 3.06 | 12.7 | 210±6 | 110±5 | 28±1 | 15±0.5 | 80 |
| VNT095-28B7 | 3.81 | 10.5 | 270±6 | 140±5 | 28±1 | 15±0.5 | 70 |
| VNT095-32B6 | 5.05 | 15.2 | 270±6 | 140±5 | 32 | 17±0.5 | 70 |
| VNT095-38B6 | 7.3 | 25.1 | 270±6 | 140±5 | 38 | 20±0.5 | 70 |
| VNT095-38B7 | 10.78 | 17 | 420±10 | 220±6 | 38 | 20±0.5 | 70 |
| VNT095-45B6 | 12.2 | 34 | 320±7 | 170±6 | 45 | 24±0.5 | 80 |
| VNT095-45B7 | 17.06 | 24.5 | 470±10 | 250±6 | 45 | 24±0.5 | 80 |
| VNT095-50B6 | 17.65 | 40 | 380±7 | 200±6 | 50±2 | - | - |
| VNT095-50B7 | 20.7 | 40 | 450±10 | 250±6 | 50±2 | - | - |
| VNT095-60B6 | 28.85 | 58 | 430±10 | 220±6 | 60±2 | - | - |
| VNT095-70B6 | 45.48 | 84 | 500±10 | 250±6 | 70±2 | - | - |
