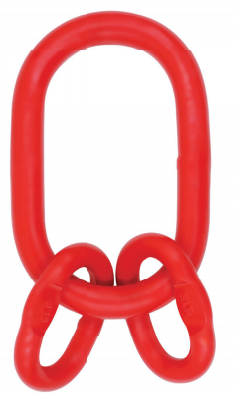

VNT032 A-346 G80 European Type Master Link Assembly
Forged or welded super alloy steel.
Super alloy steel - Quenched and tempered.
Individually proof tested at 2.5 times Working Load Limit.
Breaking test and fatigue test.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All load pin are 100% individually inspected and tested.
Suitable for 3 or 4 legs G80 chain sling as per EN818-4.

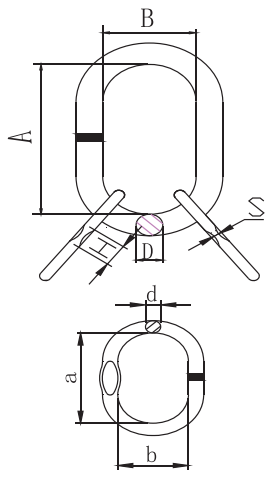

| Item No. | Weight(KG) | WLL(T) | A | B | D | a | b | d | S×H |
| VNT032-W-6 | 1.18 | 2.36 | 135 | 75 | 18 | 54 | 25 | 13 | 7+0.3×25 |
| VNT032-W-7 | 1.24 | 3.15 | 135 | 75 | 18 | 60 | 38 | 13 | 7+0.5×25 |
| VNT032-W-8 | 2.2 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 | 8+0.5×28 |
| VNT032-W-10 | 3.4 | 6.7 | 180 | 100 | 26 | 85 | 40 | 18 | 11±0.5×35 |
| VNT032-W-13 | 6.1 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 | 13±0.5×43 |
| VNT032-W-16 | 9.98 | 17 | 260 | 140 | 36 | 140 | 65 | 26 | 17±0.5×55 |
| VNT032-W-18B | 19.1 | 19.5 | 300 | 160 | 40 | 270 | 140 | 32 | 18±0.5×59 |
| VNT032-W-18C | 19.4 | 21.2 | 340 | 180 | 45 | 160 | 90 | 32 | 18±0.5×59 |
| VNT032-W-18 | 18.9 | 21.2 | 340 | 190 | 45 | 180 | 100 | 32 | 18±0.5×59 |
| VNT032-W-20C | 23.1 | 26.5 | 350 | 190 | 50 | 160 | 90 | 32 | 18±0.5×59 |
| VNT032-W-20 | 23.7 | 26.5 | 350 | 190 | 50 | 180 | 100 | 32 | 20±0.5×64 |
| VNT032-W-22 | 25.2 | 31.5 | 350 | 190 | 50 | 180 | 100 | 36 | - |
| VNT032-W-26 | 35.2 | 45 | 400 | 200 | 56 | 180 | 100 | 40 | - |
| VNT032-W-28 | 47 | 50 | 430 | 220 | 63 | 180 | 100 | 45 | - |
| VNT032-W-32 | 66.46 | 67 | 460 | 250 | 72 | 200 | 110 | 50 | - |
BLACK WORD AREAS: MAIN LINK: WELDED SUB LINKS: WELDED
RED WORD AREAS: MAIN LINK: FORGED SUB LINKS: WELDED
ITEM VNT032-6 to VNT032-20: there will be pressing flat only on request.
ITEM VNT032-22 to VNT032-32: there is no pressing flat.
The pressing flat for use with DS002 G80 OMEGA LINK.
For use with wire rope sling, refer to DIN3088 standard.
For use with synthetic sling, refer to EN1492-1 standard.
