Brand: VENIT/OEM

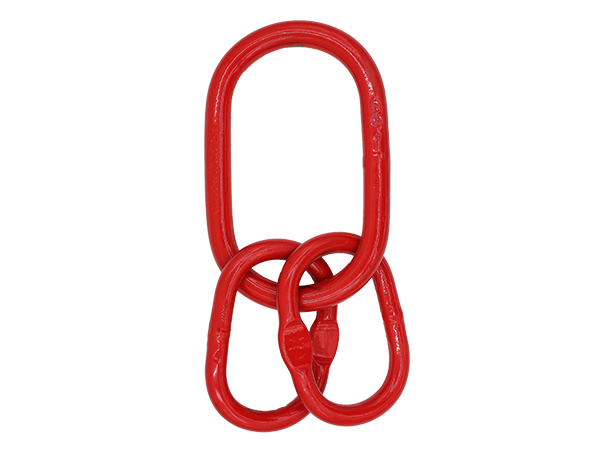

VNT094 A-347 G80 US Type Alloy Steel Welded Master Link Assembly
Forged alloy steel-Quenched and Tempered.
Suitable for use with G80 chain.
Individually proof tested at 2 times Working Load Limit(4:1).
Breaking test.
100% Magnaflux Crack Detection.
Strict break load test.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Red Area size: Main Link: Welded, Sub Links: Welded.
Black Area size: Main Link: Forged, Sub Links:Welded.
For chain sling: Minimum Ultimate load is 4 times the Working Load Limit.
For steel rope sling: Minimum Ultimate load is 5 times the Working Load Limit.
The pressing flat is for use with VNT002 G80 OMEGA LINK.
There will be pressing flat only on request.

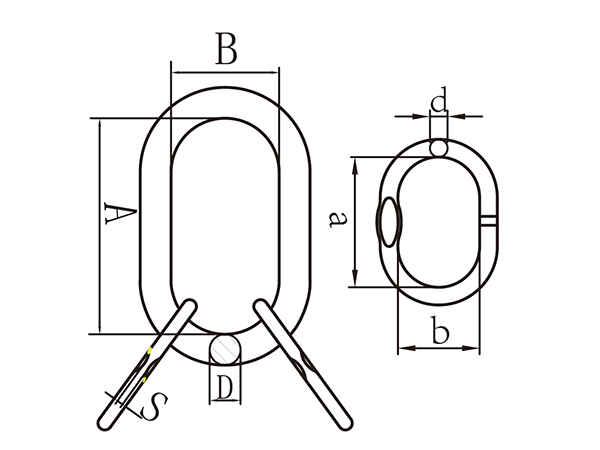

| Item No. | Weight kg | G80 Chain | WLL 3 or 4 leg 0-45°T | WLL Rope T | A | B | D | a | b | d | s |
| VNT094-1/2 | 0.82 | 7/32 | 2.36 | 2.4 | 100±4 | 60±4 | 14±0.5 | 85±4 | 40±3 | 12±0.5 | 6+0.5 |
| VNT094-11/16 | 1.6 | 1/4 | 3.15 | 3.2 | 160±5 | 90±4 | 18±0.5 | 100±4 | 60±4 | 14±0.5 | 7.6±0.5 |
| VNT094-5/8 | 1.6 | 1/4 | 3.15 | 3.2 | 160±5 | 90±4 | 18±0.5 | 100±4 | 60±4 | 14±0.5 | 7.6±0.5 |
| VNT094-3/4 | 1.95 | 5/16 | 4.25 | 4.2 | 160±5 | 90±4 | 20±0.5 | 100±4 | 60±4 | 14±0.5 | 7.6±0.5 |
| VNT094-7/8 | 3.16 | 3/8 | 6.7 | 8 | 180±5 | 100±4 | 22±1 | 150±5 | 70±4 | 18±0.5 | 8.4±0.5 |
| VNT094-1 B | 5.28 | 3/8 | 10 | 10 | 270±6 | 140±5 | 25±1 | 155±5 | 80±4 | 20±0.5 | 11±0.5 |
| VNT094-1-1/8 | 6.75 | 1/2 | 11.2 | 12 | 270±6 | 140±5 | 28±1 | 160±5 | 90±4 | 22±1 | 13.5±0.5 |
| VNT094-1-1/4 | 9.31 | 5/8 | 17 | 17 | 270±6 | 140±5 | 32±1 | 180±5 | 100±4 | 25±1 | 16.5±0.5 |
| VNT094-1-1/2 | 18.4 | 3/4 | 23.6 | 25 | 300±6 | 160±5 | 40±1 | 270±6 | 140±5 | 31±1 | 19±0.5 |
| VNT094-1-3/4 | 26.6 | 7/8 | 31.5 | 31.5 | 340±7 | 180±5 | 45±1 | 285±6 | 155±5 | 36±1 | 22±0.5 |
| VNT094-2 | 42.91 | 1 | 45 | 45 | 350±7 | 190±5 | 51±2 | 340±7 | 180±5 | 45±1 | 25±0.5 |
