Product Details

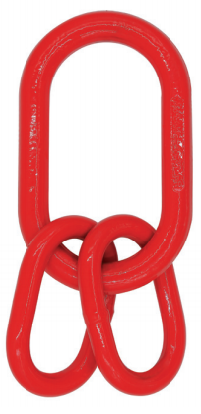

VNT484 G80 Master Link Assembly
Made of super alloy steel-Quenched and Tempered.
Individually proof test at MPF.
Breaking Test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified.
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
For chain sling: Minimum Ultimate Load is 4 times the Working Load Limit.

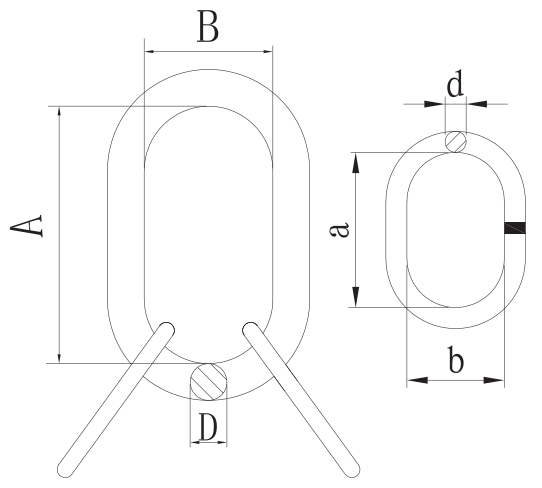

| Item No. | Weight(KG) | WLL(T) | Dimension(MM) | |||||
| A | B | D | a | b | d | |||
| VNT484-G8007-0006 | 1.43 | 4.6 | 120 | 61 | 16 | 120 | 60 | 14 |
| VNT484-G8007-0708 | 3.65 | 8.6 | 162 | 90 | 22 | 140 | 70 | 20 |
| VNT484-G8007-0010 | 5.53 | 14.5 | 200 | 110 | 28 | 140 | 70 | 22 |
| VNT484-G8007-0013 | 11.92 | 23.1 | 270 | 140 | 36 | 185 | 90 | 28 |
| VNT484-G8007-0016 | 16.4 | 29 | 280 | 155 | 40 | 200 | 110 | 32 |
| VNT484-G8007-1820 | 23.5 | 36.5 | 320 | 175 | 45 | 225 | 125 | 36 |
| VNT484-G8007-0022 | 32.3 | 45.2 | 350 | 195 | 50 | 260 | 130 | 40 |
| VNT484-G8007-0026 | 59.3 | 59.9 | 410 | 220 | 58 | 350 | 195 | 50 |
| VNT484-G8007-0032 | 101.3 | 84.7 | 490 | 265 | 70 | 410 | 220 | 60 |
