Product Details

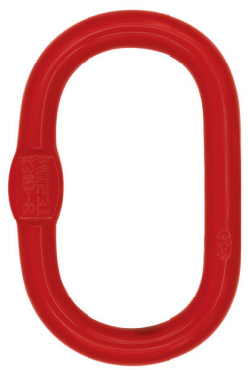

VNT482 G80 Alloy Steel Master Link with Flat
Made of super alloy steel-Quenched and Tempered.
Individually proof test at MPF.
Breaking Test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified.
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Mininum Ultimate Load is 4 times the Working Load Limit.

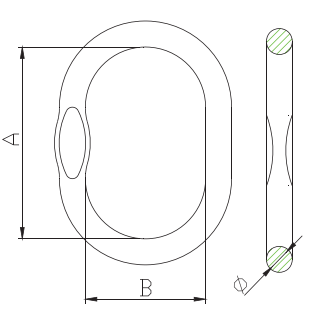

| ITEM NO. | WEIGHT/KG | WLL/T | A | B | D | With flat |
| VNT482-G8005-06 | 0.23 | 1.25 | 100 | 60 | 11 | 6±0.5 |
| VNT482-G8005-0708 | 0.44 | 3.2 | 120 | 70 | 14 | 7.5±0.5 |
| VNT482-G8005-1008 | 0.76 | 4 | 140 | 80 | 17 | 8.4±0.5 |
| VNT482-G8005-0013 | 1.03 | 6.3 | 150 | 90 | 19 | 9±0.5 |
| VNT482-G8005-1310 | 1.5 | 8.0 | 160 | 95 | 22 | 13.5±0.5 |
| VNT482-G8005-0016 | 2.17 | 11.5 | 180 | 110 | 25 | 16±0.5 |
| VNT482-G8005-1613 | 2.84 | 15 | 190 | 105 | 28 | 16.5±0.5 |
| VNT482-G8005-1613B | 2.72 | 15 | 180 | 100 | 28 | 16.5±0.5 |
| VNT482-G8005-0019 | 3.5 | 17 | 200 | 120 | 30 | 18±0.5 |
| VNT482-G8005-2216 | 5.32 | 20 | 240 | 140 | 32 | 18±0.5 |
