Product Details

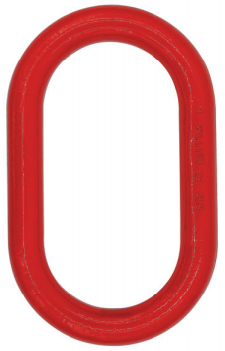

VNT481 G80 Forged Alloy Steel Master Link
Made of super alloy steel-Quenched and Tempered.
Individually proof test at MPF.
Breaking Test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified.
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
Mininum Ultimate Load is 4 times the Working Load Limit.

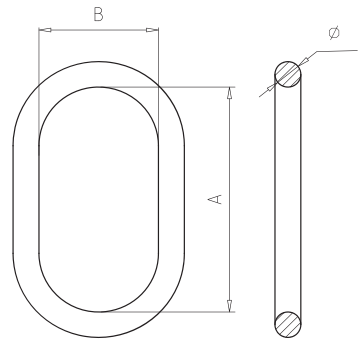

| ITEM NO. | WEIGHT/KG | WLL/T | A | B | D |
| VNT481-G8004-06 | 0.23 | 1.25 | 100 | 60 | 11 |
| VNT481-G8004-0708 | 0.44 | 3.2 | 120 | 70 | 14 |
| VNT481-G8004-1008 | 0.76 | 4 | 140 | 80 | 17 |
| VNT481-G8004-0013 | 1.03 | 6.3 | 150 | 90 | 19 |
| VNT481-G8004-1310 | 1.5 | 8.0 | 160 | 95 | 22 |
| VNT481-G8004-0016 | 2.17 | 11.5 | 180 | 110 | 25 |
| VNT481-G8004-1613 | 2.84 | 15 | 190 | 105 | 28 |
| VNT481-G8004-1613B | 2.72 | 15 | 180 | 100 | 28 |
| VNT481-G8004-0019 | 3.5 | 17 | 200 | 120 | 30 |
| VNT481-G8004-2216 | 5.32 | 20 | 240 | 140 | 32 |
| VNT481-G8004-0026 | 7.04 | 25 | 250 | 150 | 38 |
| VNT481-G8004-2619 | 7.86 | 30 | 250 | 150 | 40 |
| VNT481-G8004-3222 | 11.82 | 37 | 300 | 180 | 45 |
| VNT481-G8004-3226 | 15.2 | 43 | 300 | 200 | 50 |
| VNT481-G8004-3632 | 20.54 | 56 | 350 | 200 | 55 |
| VNT481-G8004-4536 | 26.15 | 70 | 375 | 210 | 60 |
| VNT481-G8004-90T | 42.45 | 90 | 450 | 250 | 70 |
| VNT481-G8004-100T | 57.14 | 100 | 450 | 260 | 80 |
