Product Details

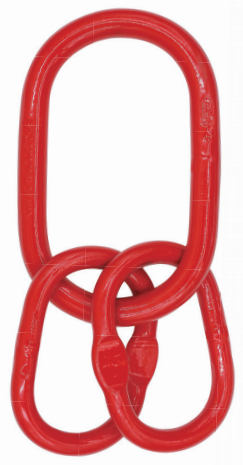

VNT096 G80 Welded Master Link Assembly with Flat
Made of super alloy steel-Quenched and Tempered.
Individually proof test at MPF.
Breaking Test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified.
Mininum Ultimate Load is 4 times the Working Load Limit.

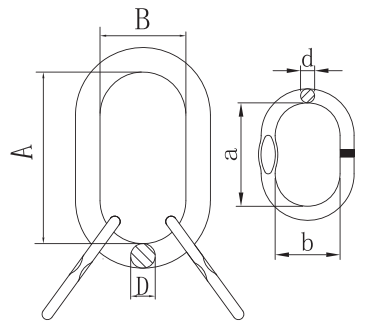

| ITEM NO. | WEIGHT/KG | WLL/T | A | B | D | a | b | d | S |
| VNT096-MA16 | 1.19 | 3.8 | 120 | 70 | 16 | 95 | 51 | 13 | 7.5±0.5 |
| VNT096-MA20 | 2.5 | 5.8 | 170 | 90 | 20 | 120 | 70 | 16 | 9±0.5 |
| VNT096-MA20-B | 2.5 | 5.8 | 170 | 90 | 20 | 120 | 70 | 16 | 9±0.5 |
| VNT096-MA22 | 3.77 | 7.6 | 170 | 90 | 22 | 150 | 80 | 20 | 11±0.5 |
| VNT096-MA22-B | 3.77 | 7.6 | 160 | 90 | 22 | 150 | 80 | 20 | 11±0.5 |
| VNT096-Q23B | 3.6 | 5.8 | 270 | 140 | 22 | 150 | 75 | 16 | 9±0.5 |
| VNT096-Q23B-B | 3.3 | 5.8 | 270 | 140 | 22 | 120 | 70 | 16 | 9±0.5 |
| VNT096-Q23B-C | 3.6 | 5.8 | 270 | 140 | 22 | 150 | 75 | 16 | 9±0.5 |
| VNT096-MA25 | 4.45 | 10 | 190 | 100 | 25 | 150 | 80 | 20 | 11±0.5 |
| VNT096-MA25-B | 4.45 | 10 | 190 | 102 | 25 | 150 | 80 | 20 | 11±0.5 |
| VNT096-Q29B | 5.6 | 11.8 | 270 | 140 | 28 | 140 | 70 | 20 | 11±0.5 |
| VNT096-Q29B-B | 5.9 | 11.8 | 270 | 140 | 28 | 150 | 70 | 20 | 11±0.5 |
| VNT096-Q29B-C | 5.6 | 11.8 | 270 | 140 | 28 | 140 | 70 | 20 | 11±0.5 |
| VNT096-MA28 | 6.12 | 12.7 | 210 | 110 | 28 | 170 | 90 | 22 | 12±0.5 |
| VNT096-MA28 | 6.12 | 12.7 | 210 | 110 | 28 | 170 | 90 | 22 | 12±0.5 |
| VNT096-MA32 | 9.47 | 15.2 | 270 | 140 | 32 | 190 | 100 | 25 | 13±0.5 |
| VNT096-MA32-C | 9.47 | 15.2 | 270 | 140 | 32 | 190 | 100 | 25 | 13±0.5 |
| VNT096-MA38 | 17.4 | 25 | 270 | 140 | 38 | 270 | 140 | 32 | 17±0.5 |
| VNT096-MA38-B | 15 | 17 | 420 | 220 | 38 | 180 | 100 | 25 | 17±0.5 |
| VNT096-MA38-C | 17.4 | 25 | 270 | 140 | 38 | 270 | 140 | 32 | 17±0.5 |
| VNT096-MA45 | 26.76 | 34 | 320 | 170 | 45 | 270 | 140 | 38 | 20±0.5 |
| VNT096-MA50 | 33.2 | 40 | 380 | 200 | 50 | 270 | 140 | 38 | - |
| VNT096-MA60 | 65 | 58 | 430 | 220 | 60 | 380 | 200 | 50 | - |
| VNT096-MA70 | 103 | 84 | 500 | 250 | 70 | 430 | 220 | 60 | - |
