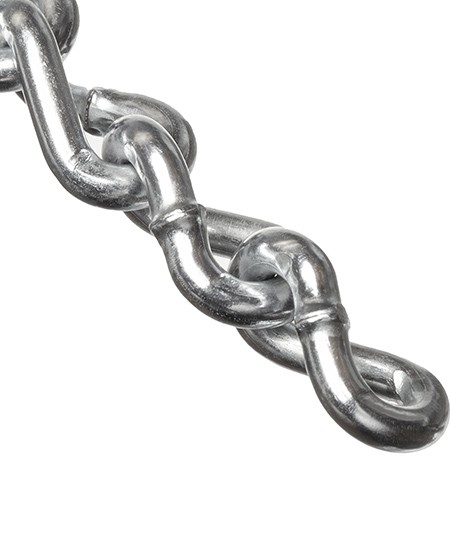

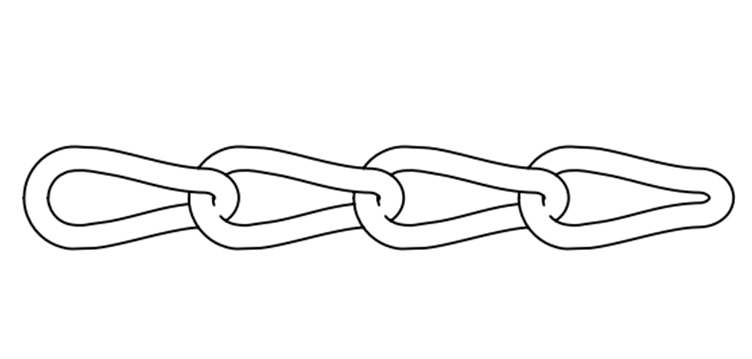

US Type Machine Twist Link Chain
Brand: VENIT/OEM
Discover the strength and durability of our advanced US Type Machine Twist Link Chain, now available in China. Perfect for industrial, marine, and automotive applications.
Product Details
US Type Machine Twist Link Chain
Product Features:
• Standard Material: Low Carbon Steel.
• Standard Finish: Zinc Plated.
• Design Factor: 4 to 1.
• Do Not Use for Overhead Lifting.
| Trade Size | Material Diameter | Working Load (Max) | Breaking Force(Min) | Normal Inside Length | Normal Inside Width | ||||||
| MM | No. | MM | IN | KG | LBS | KN | LBS | MM | IN | MM | IN |
| 3 | 4 | 3 | 0.12 | 88 | 195 | 3.47 | 780 | 27.6 | 1.09 | 4.56 | 0.18 |
| 3.4 | 3 | 3.4 | 0.135 | 109 | 240 | 4.31 | 970 | 28.9 | 1.14 | 5.32 | 0.21 |
| 3.8 | 2 | 3.8 | 0.148 | 134 | 295 | 5.25 | 1180 | 29.1 | 1.15 | 5.58 | 0.22 |
| 4.1 | 1 | 4.1 | 0.162 | 159 | 350 | 6.24 | 1405 | 30.9 | 1.22 | 6.34 | 0.25 |
| 4.5 | 1/0 | 4.5 | 0.177 | 188 | 415 | 7.43 | 1670 | 30.9 | 1.22 | 6.85 | 0.27 |
| 4.9 | 2/0 | 4.9 | 0.192 | 225 | 495 | 8.78 | 1975 | 31.4 | 1.24 | 7.36 | 0.29 |
| 5.3 | 3/0 | 5.3 | 0.207 | 261 | 575 | 10.23 | 2300 | 31.9 | 1.26 | 8.12 | 0.32 |
| 5.5 | 4/0 | 5.5 | 0.218 | 288 | 635 | 11.32 | 2545 | 34 | 1.34 | 8.32 | 0.33 |
| 6.4 | 5/0 | 6.4 | 0.25 | 379 | 835 | 14.86 | 3345 | 37.3 | 1.47 | 9.65 | 0.38 |
