Classy DIN763 Link Chain with Discount

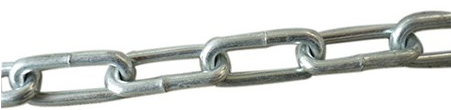

DIN763 Link Chain

Brand: VENIT/OEM
Elevate your project with classy DIN763 link chains, now available at a discount in China. Our chains are crafted to perfection, blending elegance with functionality. Don't miss out on our limited-time offer and experience the best of both worlds.

Product Details

DIN763 Link Chain

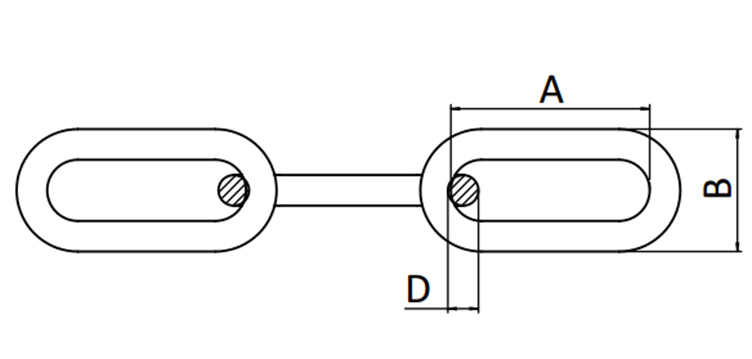

Size D		Inside Length A		Outside Width B		Working Load	Test Load	Breaking Load	Weight Per M
MM	!AMM	MM	!AMM	MM	!AMM	KG	N	N	KG
2.0	0.5	22	1.0	8	0.4	25	800	1250	0.06
2.5		24	1.1	10	0.5	40	800	2000	0.10
3		26	1.2	12	0.6	55	1050	3200	0.15
3.5		28	1.3	14	0.7	80	1540	3850	0.20
4		32	1.5	16	0.8	100	2500	6500	0.27
4.5		34	1.7	18	0.9	128	3000	8000	0.35
5		35	1.8	20	1	160	4000	10000	0.43
5.5		38.5	1.8	22	1.1	195	4200	10500	0.52
6		42	2	24	1.2	200	5000	12000	0.63
7		49	2.5	28	1.4	300	7500	19000	0.86
8		52	2.5	32	1.6	400	10000	25000	1.1
8.5		56	2.8	34	1.7	460	10200	25500	1.25
9		59	3.0	36	1.8	530	10500	32000	1.41
10	1	65	3.2	40	2.0	630	16000	40000	1.75
11		72	3.4	44	2.0	790	15800	47500	2.11
12		78	3.6	48	2.3	940	18800	56500	2.55
13		82	4	52	2.5	1000	25000	63000	2.95
16		100	5	64	3.2	1600	40000	100000	4.45
18		113	5.2	70	3.2	2120	42300	127000	5.65
19		119	5.6	72	3.4	2370	47300	142000	6.25
20		120	6	75	3.8	2500	50000	160000	7.0
22		127	6	82	4.0	3170	63300	190000	8.55
25		140	6.6	88	4.2	4090	81700	245000	10.90
28		152	7.0	96	4.7	6000	120000	300000	13.9
32		171	7.8	108	5.2	8000	160000	400000	18.2
