Get the best of both worlds with our discounted high-quality NACM1996/2003 standard link chains, crafted and supplied directly by a trusted factory in China. Combining exceptional strength, durability, and affordability,

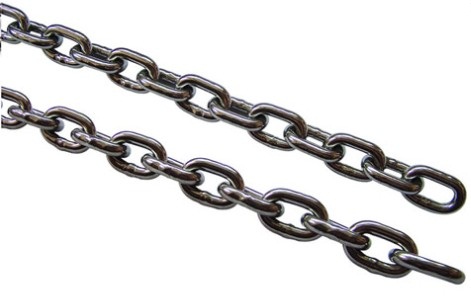

NACM1996/2003 Standard Link Chain
Proof Coil Chain NACM1996/2003 G30
| SIZE | DIAMETER | WORKING LOAD LIMIT | PROOF TEST | BREAKING FORCE MINIMUM | MAX INSIDE LENGTH | MIN INSIDE WIDTH | |||||||
| MM | IN | MM | IN | KG | LBS | KN | LBS | KN | LBS | MM | IN | MM | IN |
| 4 | 1/8 | 4 | 0.156 | 180 | 400 | 3.8 | 800 | 7.2 | 1600 | 23.9 | 0.94 | 6.4 | 0.25 |
| 5.5 | 3/16 | 5.5 | 0.217 | 365 | 800 | 7.2 | 1500 | 14.4 | 3200 | 24.8 | 0.98 | 7.7 | 0.3 |
| 7 | 1/4 | 7 | 0.276 | 580 | 1300 | 11.6 | 2600 | 23.2 | 5200 | 31.5 | 1.24 | 9.8 | 0.38 |
| 8 | 5/16 | 8.4 | 0.331 | 860 | 1900 | 16.9 | 3800 | 33.8 | 7600 | 32.8 | 1.29 | 11.2 | 0.44 |
| 10 | 3/8 | 10 | 0.394 | 1200 | 2650 | 23.5 | 5300 | 47.2 | 10600 | 35 | 1.38 | 14 | 0.55 |
| 11.9 | 7/16 | 11.9 | 0.488 | 1680 | 3700 | 32.9 | 7400 | 65.8 | 14800 | 41.5 | 1.64 | 16.6 | 0.65 |
| 13 | 1/2 | 13 | 0.512 | 2030 | 4500 | 40 | 9000 | 80 | 18000 | 45.5 | 1.79 | 18.2 | 0.72 |
| 16 | 5/8 | 16 | 0.63 | 3130 | 6900 | 61.3 | 13800 | 122.8 | 27600 | 56 | 2.2 | 20 | 0.79 |
| 20 | 3/4 | 20 | 0.787 | 4800 | 10600 | 94.3 | 21200 | 188.6 | 42400 | 70 | 2.78 | 25 | 0.98 |
| 22 | 7/8 | 22 | 0.866 | 5810 | 12800 | 114.1 | 25600 | 228.2 | 51200 | 77 | 3.03 | 27.5 | 1.08 |
| 25 | 1″ | 26 | 1.02 | 8140 | 17900 | 159.1 | 35800 | 318.2 | 71600 | 90.9 | 3.58 | 31.7 | 1.25 |
High Test Chain NACM1996/2003 G43
| SIZE | DIAMETER | WORKING LOAD LIMIT | PROOF TEST | BREAKING FORCE MINIMUM | MAX INSIDE LENGTH | MIN INSIDE WIDTH | |||||||
| MM | IN | MM | IN | KG | LBS | KN | LBS | KN | LBS | MM | IN | MM | IN |
| 7 | 1/4 | 7 | 0.276 | 1180 | 2800 | 17.3 | 3900 | 34.6 | 7800 | 31.5 | 1.24 | 9.8 | 0.38 |
| 8.7 | 5/16 | 8.7 | 0.343 | 1770 | 3900 | 26 | 5850 | 52 | 11700 | 32.8 | 1.29 | 11.2 | 0.44 |
| 10 | 3/8 | 10.3 | 0.406 | 2450 | 5400 | 36 | 8100 | 72 | 16200 | 35 | 1.38 | 14 | 0.55 |
| 11.9 | 7/16 | 11.9 | 0.468 | 3270 | 7200 | 48 | 10800 | 96 | 21600 | 41.6 | 1.64 | 16.6 | 0.65 |
| 13 | 1/2 | 13.5 | 0.531 | 4170 | 9200 | 61.3 | 13800 | 122.6 | 27600 | 45.5 | 1.79 | 18.2 | 0.72 |
| 16 | 5/8 | 16 | 0.63 | 5910 | 13000 | 86.5 | 19500 | 173 | 39000 | 560 | 2.2 | 20 | 0.79 |
| 20 | 3/4 | 20 | 0.787 | 9180 | 20200 | 134.7 | 30300 | 269.4 | 60600 | 70 | 2.76 | 25 | 0.98 |
| 22 | 7/8 | 22 | 0.866 | 11140 | 24500 | 163.3 | 36750 | 326.4 | 73500 | 77 | 3.03 | 27.5 | 1.08 |
Transport Chain NACM1996/2003 G70
| SIZE | DIAMETER | WORKING LOAD LIMIT | PROOF TEST | BREAKING FORCE MINIMUM | MAX INSIDE LENGTH | MIN INSIDE WIDTH | |||||||
| MM | IN | MM | IN | KG | LBS | KN | LBS | KN | LBS | MM | IN | MM | IN |
| 7 | 1/4 | 7 | 0.281 | 1430 | 3150 | 28 | 6300 | 56 | 12600 | 31.8 | 1.24 | 9.8 | 0.38 |
| 8.7 | 5/16 | 8.7 | 0.343 | 2130 | 4700 | 41.8 | 9400 | 83.6 | 18800 | 32.8 | 1.29 | 11.2 | 0.44 |
| 10 | 3/8 | 10.3 | 0.406 | 2990 | 6600 | 58.7 | 13200 | 117.4 | 26400 | 35 | 1.38 | 14 | 0.55 |
| 13 | 3/8 | 13.5 | 0.531 | 5130 | 11300 | 100.4 | 22600 | 200.8 | 45200 | 45.5 | 1.79 | 18.2 | 0.72 |
| 16 | 3/8 | 16 | 0.63 | 7170 | 15800 | 140.4 | 31600 | 280.8 | 63200 | 56 | 2.2 | 20 | 0.79 |
| 20 | 3/8 | 20 | 0.787 | 11200 | 24700 | 219.6 | 49400 | 439.2 | 98800 | 70 | 2.76 | 25 | 0.98 |
