Advanced DIN5685 A/C Short & Long Link Chain Supplier in China

DIN5685 A/C Short /Long Link Chain

Brand: VENIT/OEM
Looking for an advanced supplier of DIN5685 A/C short and long link chains in China? We offer premium quality chains that meet stringent DIN standards, ideal for various industrial applications. Trust our expertise and reliability for your chain needs.

Product Details

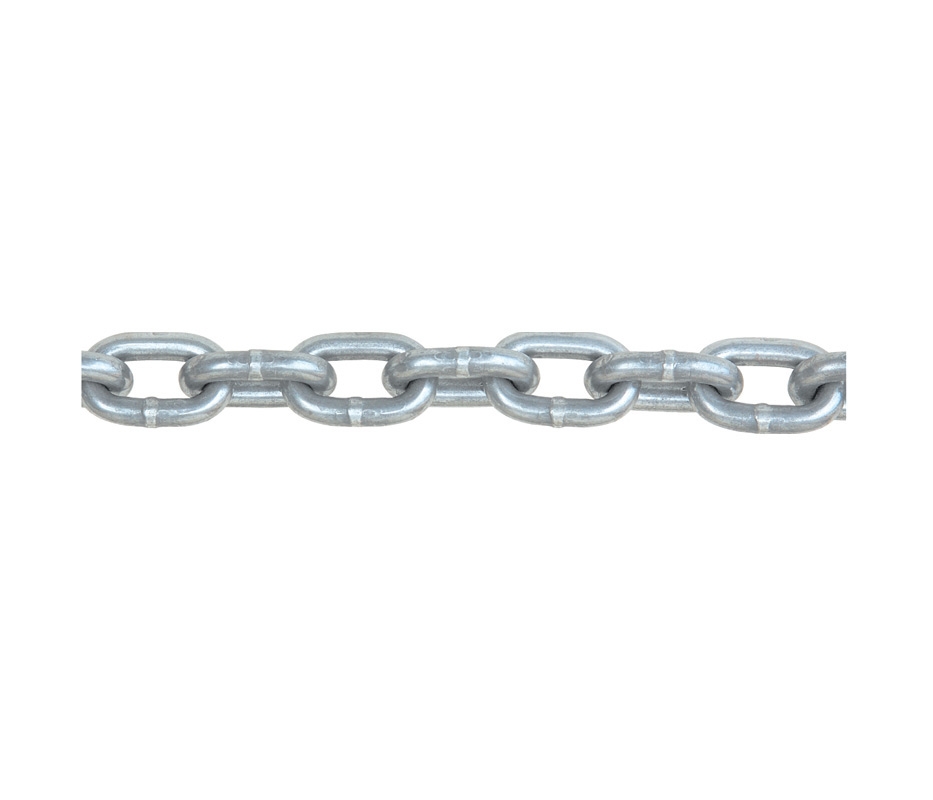

DIN5685 A/C Short /Long Link Chain

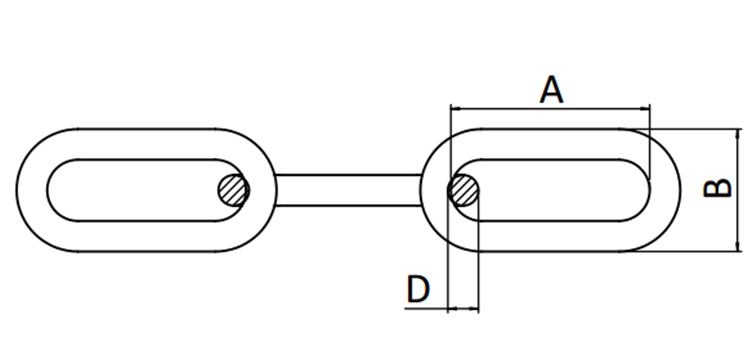

Size D	Inside Length A	Outside Width B	Weight Per 100M	Working Load	Breaking Load	Type Of Link
MM	MM	MM	KG	N	N
2	12	8	7	500	1250	A
	22		6			C
2.5	14	10	11	750	2000	A
	24		10			C
3	16	12	16.5	1120	2800	A
	26		15			C
3.5	18	14	22.5	1500	3850	A
	28		20			C
4	19	16	30	2000	5000	A
	32		27			C
4.5	20	18	39.5	2500	6300	A
	34		35			C
5	21	20	50	3150	7750	A
	35		43			C
5.5	23	22	60.5	3800	9500	A
	38.5		52			C
6	24	24	73	4500	11500	A
	42		63			C
6.5	26	26	86	5400	13500	A
	45.5		74			C
7	28	28	100	6000	15000	A
	49		86			C
8	32	32	130	8000	20000	A
	52		110			C
8.5	34	34	149	9000	22500	A
	56		125			C
9	36	36	165	10000	25000	A
	59		141			C
10	40	40	205	12500	31000	A
	65		175			C
11	44	44	250	15000	38000	A
	72		211			C
12	48	48	290	18000	45000	A
	78		255			C
13	52	52	345	21200	53000	A
	82		295			C
