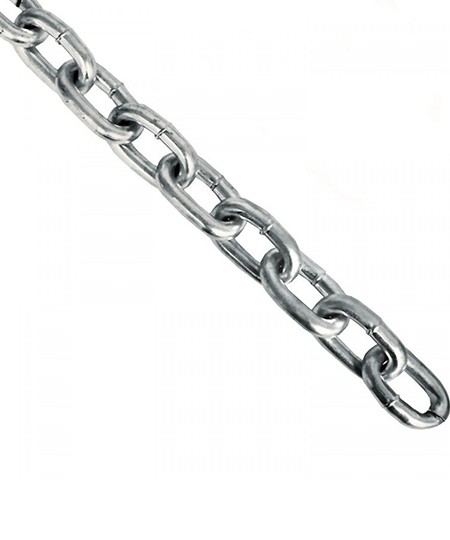

DIN766 Link Chain
Brand: VENIT/OEM
Trust in ISO9001 certified DIN766 link chains for unmatched quality and reliability, sourced directly from China. Our chains meet the highest international standards, ensuring durability and performance in various applications. Choose us for top-notch industrial solutions.
Product Details
DIN766 Link Chain

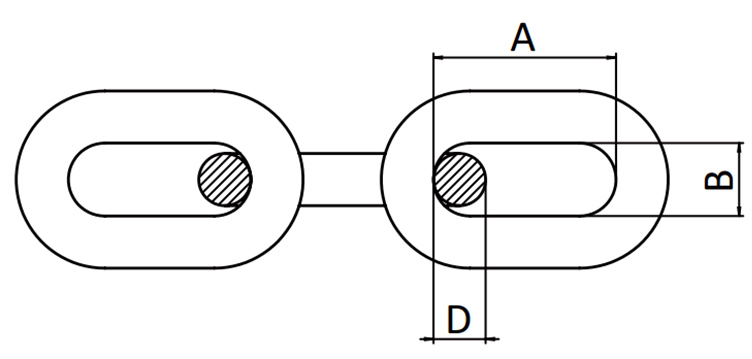

| Size D | Inside Length A | Inside Width B | Outside Width | Length Per 11 Links | Weight Per M | Breaking Load | |||||
| MM | !AMM | MM | +MM | -MM | MM | MM | MM | +MM | -MM | KG | KN |
| 2 | 0.2 | 12 | 0.2 | 0.2 | 3.5 | 7.5 | 132 | 1.0 | 0.5 | 0.07 | 1.25 |
| 3 | 0.2 | 16 | 0.2 | 0.2 | 4.2 | 11 | 176 | 1.4 | 0.7 | 0.16 | 4.00 |
| 4 | 0.2 | 16 | 0.3 | 0.2 | 5 | 13.7 | 176 | 2.1 | 1.1 | 0.32 | 8.00 |
| 5 | 0.2 | 18.5 | 0.4 | 0.2 | 6 | 17 | 203.5 | 2.4 | 1.2 | 0.5 | 12.50 |
| 6 | 0.2 | 18.5 | 0.4 | 0.2 | 7.2 | 20.2 | 203.5 | 2.4 | 1.2 | 0.8 | 16.00 |
| 7 | 0.3 | 22 | 0.4 | 0.2 | 8.4 | 23.8 | 242 | 3 | 1.4 | 1.1 | 25.00 |
| 8 | 0.3 | 24 | 0.4 | 0.2 | 9.6 | 27.2 | 264 | 3.2 | 1.5 | 1.4 | 32.00 |
| 9 | 0.4 | 27 | 0.5 | 0.3 | 10.8 | 30.6 | 297 | 3.6 | 1.8 | 1.8 | 40.00 |
| 10 | 0.4 | 28 | 0.5 | 0.3 | 12 | 34 | 308 | 3.7 | 1.9 | 2.2 | 50.00 |
| 11 | 0.4 | 31 | 0.5 | 0.3 | 13.2 | 37.4 | 341 | 4 | 2 | 2.7 | 63.00 |
| 12 | 0.3 | 36 | 0.6 | 0.3 | 14.4 | 40.8 | 396 | 4.4 | 2.2 | 3.10 | 72.40 |
| 13 | 0.5 | 36 | 0.6 | 0.3 | 15.6 | 44.2 | 396 | 4.6 | 2.4 | 3.8 | 80.00 |
| 14 | 0.6 | 41 | 0.7 | 0.4 | 16.8 | 47.6 | 451 | 5.4 | 2.7 | 4.4 | 100.00 |
| 16 | 0.6 | 45 | 0.8 | 0.4 | 19.2 | 54.4 | 495 | 6 | 3 | 5.7 | 125.00 |
| 18 | 0.9 | 50 | 0.8 | 0.4 | 21.6 | 61.2 | 550 | 6.6 | 3.3 | 7.3 | 160.00 |
| 19 | 0.4 | 53 | 0.9 | 0.4 | 22.8 | 64.6 | 583 | 7.0 | 3.7 | 7.97 | 180.00 |
| 20 | 1 | 56 | 1 | 0.5 | 24 | 68 | 616 | 7.4 | 3.7 | 9 | 200.00 |
| 22 | 1.2 | 62 | 1.1 | 0.5 | 26.4 | 75.0 | 682 | 8.0 | 4.0 | 11.0 | 243.20 |
| 23 | 1.2 | 64 | 1.1 | 0.5 | 27.6 | 78.2 | 704 | 8.4 | 4.2 | 12 | 250.00 |
| 26 | 1.3 | 73 | 1.2 | 0.6 | 31.2 | 88.4 | 803 | 9.6 | 4.8 | 15 | 320.00 |
| 28 | 1.4 | 78 | 1.3 | 0.65 | 33.8 | 95.2 | 858 | 10.2 | 5.1 | 18 | 400.00 |
| 30 | 1.5 | 84 | 1.4 | 0.7 | 41.0 | 102 | 924 | 11.0 | 5.5 | 19.5 | 450.00 |
| 32 | 1.6 | 90 | 1.5 | 0.75 | 43.0 | 108.8 | 990 | 11.8 | 5.9 | 23.0 | 500.00 |
