High-Grade Black Oxide EN818-2 G80 20Mn2 Lifting Chain at Low Prices from China Factory

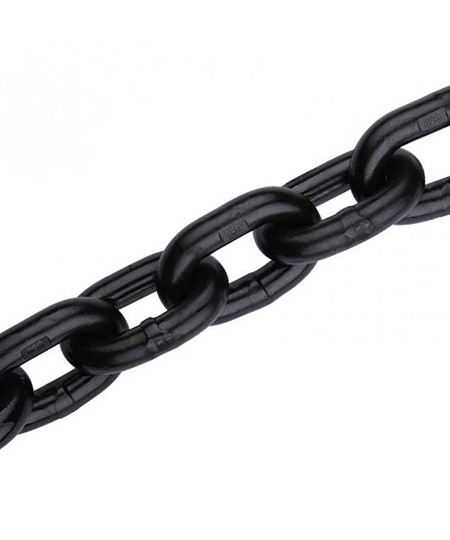

Black Oxide EN818-2 G80 20Mn2 Lifting Chain

Brand: VENIT/OEM

Get the best of both worlds with our high-grade Black Oxide EN818-2 G80 20Mn2 lifting chains, offered at low prices directly from our factory in China. Combining superior strength, durability, and affordability, our lifting chains are designed to meet you.

Product Details

Black Oxide EN818-2 G80 20Mn2 Lifting Chain

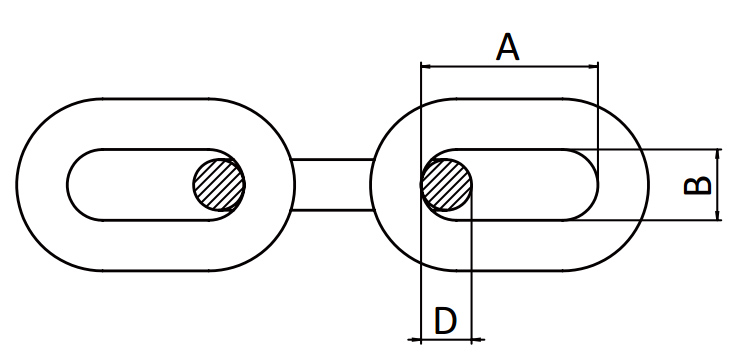

Size mm	Pitch	Width		WLL	Proof Force	Min. Breaking Load	Weight
Size mm	mm	Internal Min. mm	External Max. mm	T	kN	kN	Kg/m
6	18	7.8	22.2	1.12	28.3	45.2	0.78
7	21	9.1	25.9	1.5	38.5	61.6	1.06
8	24	10.4	29.6	2	50.3	80.4	1.38
10	30	13.0	37.0	3.15	78.5	126	2.2
13	39	16.9	48.1	5.3	133	212	3.7
16	48	20.8	59.2	8	201	322	5.6
18	54	23.4	66.6	10	254	407	6.8
19	57	24.7	70.3	11.5	281	450	8.1
20	60	26.0	74.0	12.5	314	503	8.6
22	66	28.6	81.4	15	380	608	10.2
23	69	29.9	85.1	16.6	415	664	12.0
25	75	32.5	92.5	19.63	490.6	785	14.1
26	78	33.8	96.2	21.2	531	849	14.87
32	96	41.6	118.0	31.5	804	1290	22.29
34	102	46.5	121.5	36.3	870	1450	25.5
36	108	49.5	128.5	40.7	978	1630	31
38	114	52	136	45.3	1086	1810	32
42	126	55.5	144.5	55.4	1332	2200	38.6
