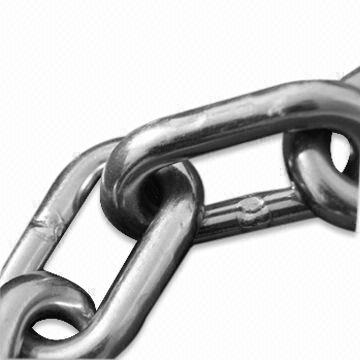

Australian Standard Link Chain
Brand: VENIT/OEM
Discover top-notch Australian Standard Link Chains at discounted prices, directly from our factory in China. Ensuring premium quality and unbeatable value, we are your trusted source for industrial-grade chains.
Product Details
Australian Standard Link Chain
Short Link Chain
| Chain Size | Working Load | Link Dimension | Links Per M | Length Per 100KG | |||
| S | R | F | B.F. | H.D.G. | |||
| MM | MT | MM | MM | MM | PC | M | M |
| 5 | 0.24 | 5 | 14.6 | 17.2 | 68.3 | 174 | 167 |
| 6 | 0.32 | 6.3 | 18.9 | 21.5 | 52.9 | 114 | 108 |
| 8 | 0.53 | 8.0 | 24.0 | 27.5 | 41.7 | 70.5 | 67.0 |
| 10 | 0.83 | 10.0 | 29.5 | 33.5 | 33.9 | 45.2 | 42.9 |
| 12 | 1.50 | 12.5 | 37.5 | 40.6 | 26.7 | 29.5 | 28.0 |
| 13 | 1.60 | 13 | 38.8 | 44.6 | 25.8 | 26.9 | 26.3 |
| 16 | 2.31 | 16 | 47.0 | 54.0 | 21.3 | 17.6 | 16.7 |
| 20 | 3.45 | 20 | 59.2 | 68.5 | 16.9 | 11.3 | 11.1 |
| 22 | 4.55 | 22 | 64.9 | 77 | 15.4 | 9.5 | 9.2 |
| 24 | 5.43 | 24 | 71 | 82.2 | 14.1 | 7.8 | 7.6 |
Long Link Chain
| Chain Size | Working Load | Link Dimension | Links Per M | Length Per 100KG | |||
| S | R | F | B.F. | H.D.G. | |||
| MM | MT | MM | MM | MM | PC | M | M |
| 3 | 0.05 | 3.15 | 22.1 | 15.7 | 45.3 | 555 | 526 |
| 4 | 0.09 | 4.0 | 25.4 | 18.6 | 39.3 | 345 | 323 |
| 5 | 0.19 | 5.00 | 29.3 | 21.8 | 34.1 | 217.0 | 206.0 |
| 6 | 0.32 | 6.30 | 34.5 | 26.1 | 29.0 | 135.0 | 128.0 |
| 8 | 0.53 | 8.00 | 41.2 | 31.9 | 24.3 | 82.2 | 78.1 |
| 10 | 0.83 | 10.00 | 49.0 | 38.7 | 20.4 | 52.9 | 50.2 |
