JIS F3403 Rigging Screw Turnbuckle with Solid thimble
Brand: VENIT/OEM
Our Rigging Screw Turnbuckle with solid thimble feature robust thimbles that provide a safe and stable fit to ensure reliability in Marine, industrial and other applications.
Product Details
JIS F3403 Rigging Screw Turnbuckle with Solid thimble

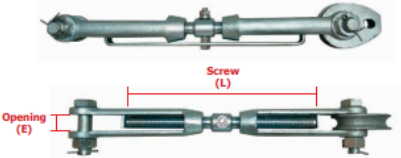

| Size | Rope Dia | Screw Dia | Screw(L) | Opening(E) | KN | Ton |
| 14 | 14 | M24 | 350 | 30 | 20.6 | 2.1 |
| 16 | 16 | M27 | 380 | 34 | 25.5 | 2.6 |
| 18 | 18 | M30 | 420 | 37 | 32.4 | 3.3 |
| 22 | 20-22.4 | M33 | 450 | 40 | 50 | 5.1 |
| 24 | 24 | M39 | 480 | 44 | 57.9 | 5.9 |
| 25 | 25 | M42 | 500 | 47 | 67.7 | 6.8 |
| 30 | 28-30 | M48 | 540 | 54 | 90.2 | 9.1 |
